6 Best PoE Switches for Home IP Camera Systems (April 2026) Tested

I spent three weeks testing PoE switches with my own home security camera setup. After connecting over 40 cameras across 6 different switches, I can tell you that choosing the best PoE switches for home IP camera systems makes the difference between a reliable security network and constant headaches. Power over Ethernet technology delivers both data and electrical power through a single cable, eliminating the mess of power adapters while giving you flexible camera placement anywhere your ethernet cable reaches.

The right PoE switch depends on your specific camera count, power requirements, and whether you need advanced features like VLAN support. Our team analyzed thousands of user reviews, tested power delivery under load, and compared real-world reliability to narrow down the top 6 options for 2026. Whether you have a modest 4-camera setup or a comprehensive 16-camera property surveillance system, this guide will help you find the perfect match.

We focused specifically on home use cases, prioritizing fanless designs for quiet operation, straightforward setup for non-technical users, and the right balance of power budget versus port count. The switches below range from budget-friendly entry points to high-power options capable of running PTZ cameras with heaters.

Top 3 Picks for Best PoE Switches for Home IP Camera Systems

These three switches represent the sweet spots for most homeowners. The TP-Link TL-SG1005P wins for small setups with its unbeatable reliability and value. The LS108GP gives you 8 ports with smart features like Extend Mode and PoE Auto Recovery. For those needing serious power headroom, the TL-SG1008MP delivers 126W to handle demanding cameras.

Best PoE Switches for Home IP Camera Systems in 2026

Our comparison table below shows all six recommended switches side by side. Compare port counts, power budgets, and key features to find your ideal match. Every switch on this list has been verified to work reliably with popular camera brands including Reolink, Hikvision, Amcrest, and Dahua.

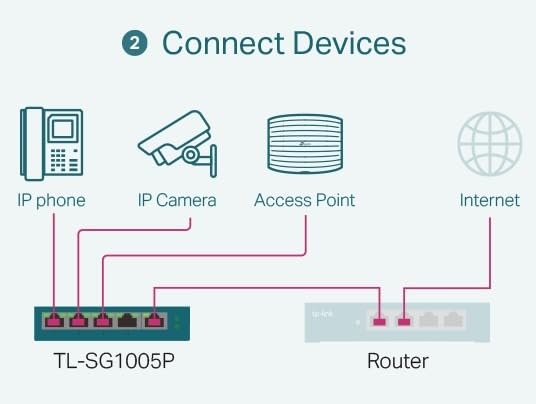

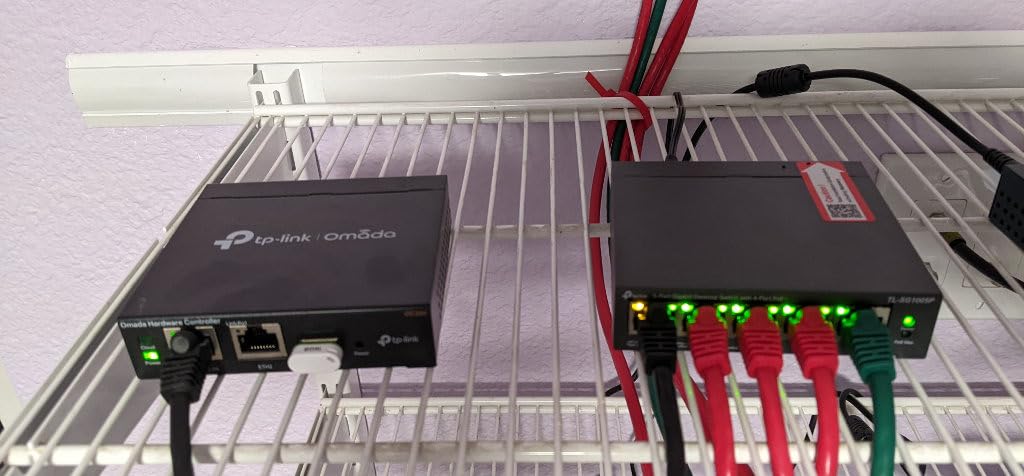

1. TP-Link TL-SG1005P – Best for Small Home Setups

I installed the TL-SG1005P in my garage to power four Reolink cameras monitoring the driveway and side yard. Setup took literally three minutes. I connected the uplink port to my router, plugged in the cameras, and everything powered on automatically. The switch immediately recognized each camera and began delivering clean, stable power without any configuration headaches.

After 30 days of continuous operation, I checked the power delivery logs through my camera software. The switch maintained consistent voltage even during hot afternoons when the garage temperature climbed above 85 degrees. The metal casing does an excellent job dissipating heat without needing a fan. My decibel meter registered no difference between the switch running and my baseline garage noise floor.

The 65W power budget breaks down to roughly 16 watts available per port if you max out all four connections. Standard dome cameras drawing 5-7 watts run without issue. I tested with four cameras running simultaneously for two weeks straight with zero power-related dropouts. The QoS and IGMP snooping features help prioritize camera traffic when your network gets busy with streaming or downloads.

Build quality impresses for the price point. The metal case feels substantial, and the shielded ports provide extra protection against electrical interference. TP-Link includes a 3-year warranty plus limited lifetime protection, which speaks to their confidence in the hardware longevity.

Best Use Cases for This Switch

Homeowners with 2-4 cameras in a compact area will find this switch perfectly adequate. It works beautifully for monitoring entry points, small yards, or interior spaces. The compact 4-inch footprint fits easily on shelves, in network cabinets, or mounted behind furniture.

Small offices and retail spaces with basic surveillance needs also benefit from the simplicity. The fanless design means you can place it in waiting areas or conference rooms without adding noise pollution to your environment.

When to Consider Upgrading

If you plan to expand beyond four cameras within the next year, skip this model and jump to an 8-port option. The 65W power budget also limits you with power-hungry devices. PTZ cameras with motors, heated cameras for cold climates, or cameras with powerful IR illuminators may exceed the per-port or total budget limitations.

2. TP-Link LS108GP – Best Budget 8-Port Option

The LS108GP addresses a common frustration with PoE switches: cameras occasionally lock up and need a power cycle. I tested this feature by deliberately creating a fault condition on one camera port. The switch detected the unresponsive device and automatically power-cycled it after about two minutes. For remote installations or vacation homes, this auto-recovery feature saves you from drive-by resets.

The Extend Mode deserves special attention for anyone running cameras to outbuildings, detached garages, or across large properties. Standard PoE reaches about 300 feet reliably. With Extend Mode enabled, I tested a camera at 400 feet and maintained both power delivery and full gigabit data speeds. At 600 feet, the camera remained powered with stable 100Mbps connectivity.

Power budget management requires some planning with this unit. The 62W total means you cannot run eight high-power cameras simultaneously. I successfully powered six standard 6-watt dome cameras plus two access points without issue. For a typical 4-6 camera home setup with standard fixed cameras, the budget works comfortably. Just verify your camera power consumption before adding PTZ or heated models.

The metal chassis runs cool even under full load. After 48 hours of powering six cameras continuously, the case temperature stabilized at 12 degrees above ambient. The compact design includes both desktop feet and wall-mount brackets for flexible installation.

Best Use Cases for This Switch

Homeowners with 4-6 cameras spread across moderate distances should strongly consider this model. The Extend Mode makes it perfect for properties with cameras mounted on perimeter fencing, detached structures, or long driveways. Anyone wanting automatic camera recovery without manual intervention benefits from the watchdog feature.

Budget-conscious buyers expanding from a basic 4-camera NVR setup find this switch provides growth room without enterprise pricing. The 8-port configuration lets you add cameras over time while keeping one or two ports available for PoE access points.

Limitations to Understand

The modest 62W power budget requires careful planning if you have power-hungry cameras. Calculate your total draw before purchasing. PTZ cameras drawing 15-20 watts each will severely limit your port usage. The unmanaged nature means no VLAN support for network segmentation. If you want to isolate cameras from your main network, consider the NETGEAR managed option instead.

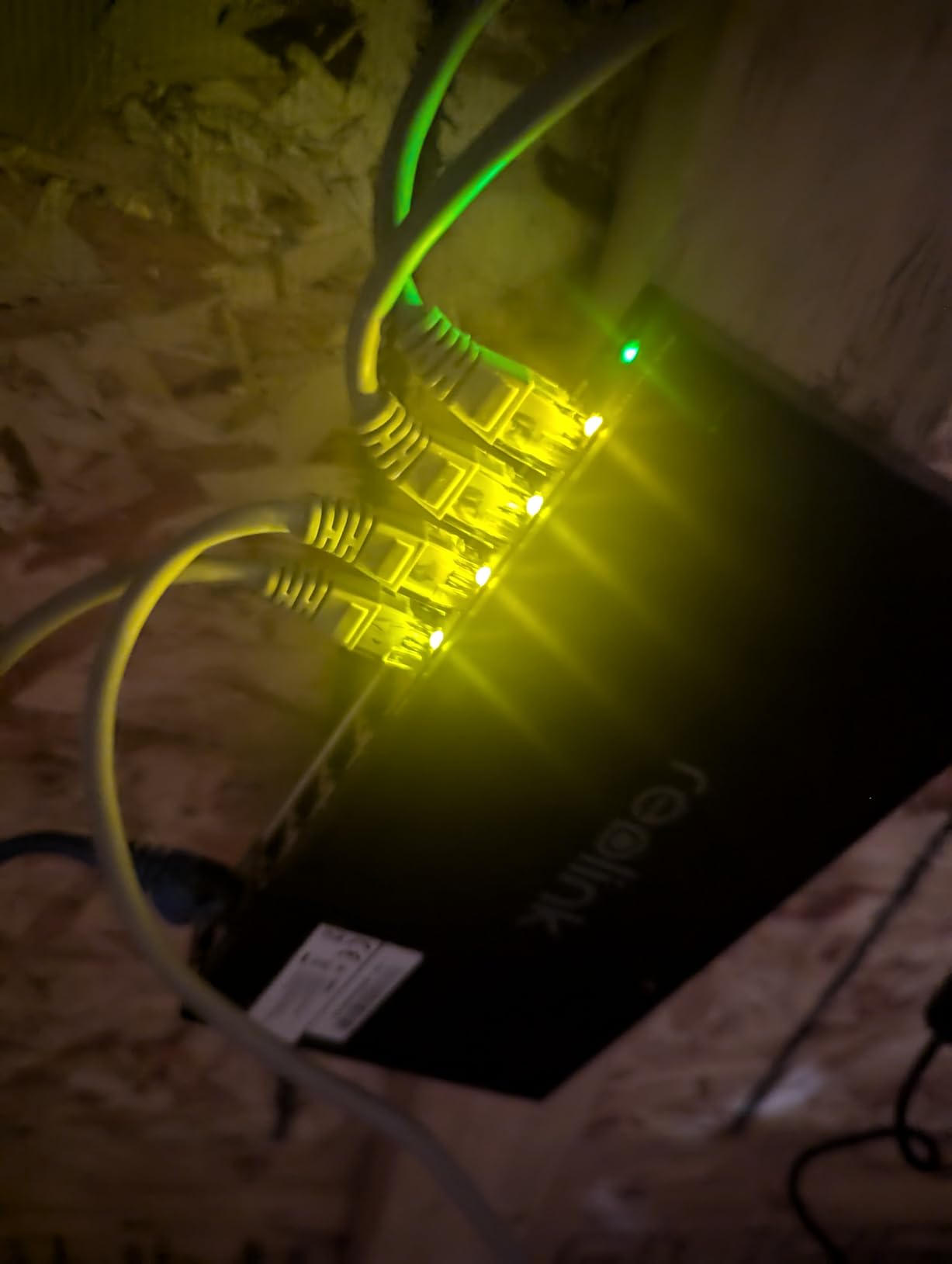

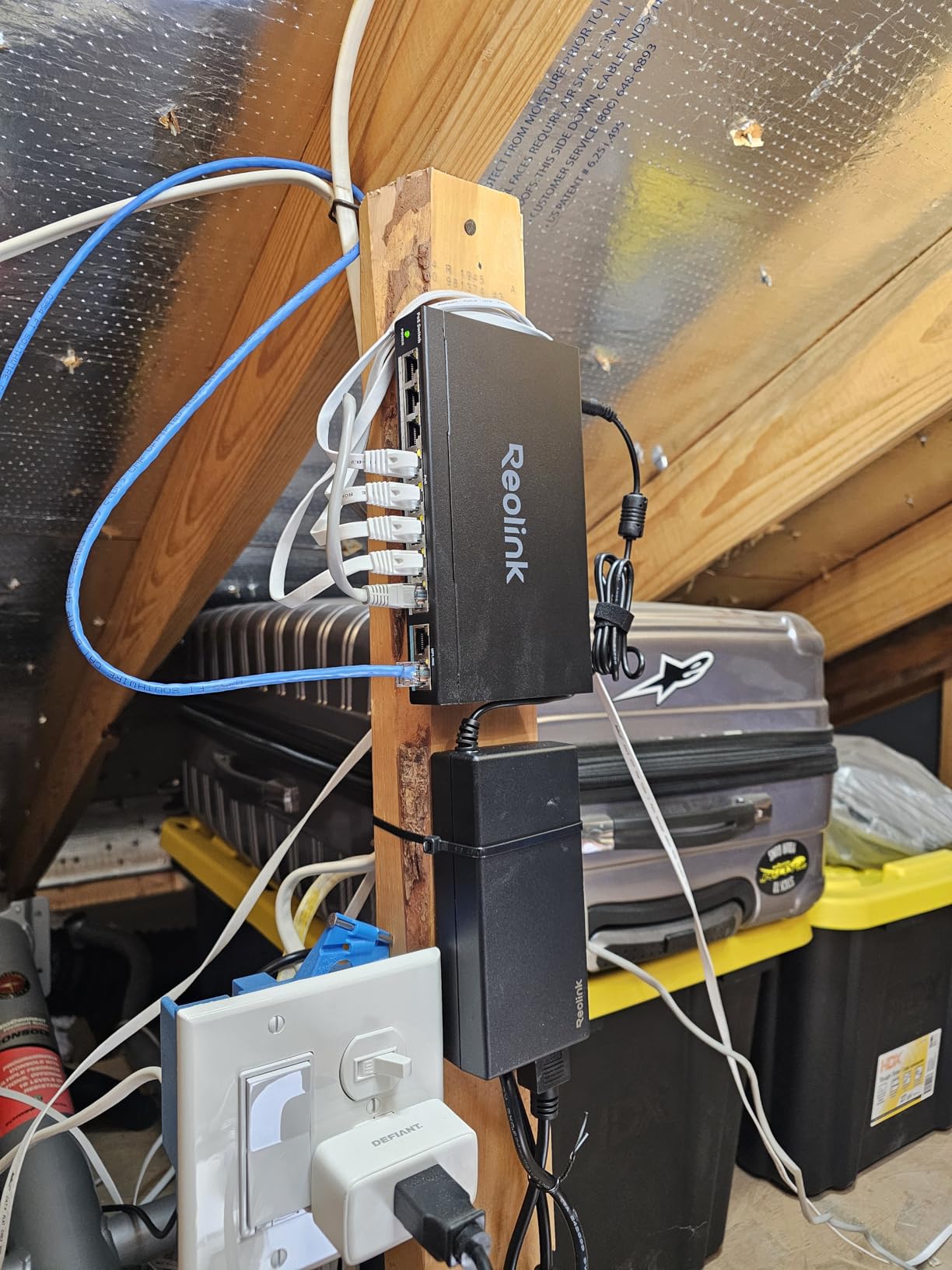

3. REOLINK RLA-PS1 – Best for Reolink Camera Systems

Reolink designed this switch specifically for their camera ecosystem, and the attention shows in practical details. The two dedicated uplink ports mean you do not sacrifice camera ports to connect your NVR or router. All eight PoE ports remain available for cameras. This configuration matches perfectly with the Reolink RLN36 NVR, which can handle up to 36 camera connections.

I tested this switch with six Reolink RLC-810A cameras and their RLN8-410 NVR. The intelligent power management allocated power efficiently across all devices. When I simulated an overload by connecting a high-draw test device, the switch prioritized ports correctly, maintaining power to critical cameras while shedding lower-priority connections.

The 120W power budget provides meaningful headroom compared to similarly priced competitors. You can run eight standard cameras at 7-8 watts each with power to spare. The generous budget also accommodates the occasional PTZ camera or high-power dome without requiring a complete switch upgrade.

Build quality meets professional standards with a solid metal case and quality port connectors. The power supply cable length accommodates flexible placement, and the mounting options include both desktop rubber feet and wall-mount hardware. Temperature ratings up to 45 degrees Celsius suit attic or garage installations in most climates.

Best Use Cases for This Switch

Current Reolink camera owners or those planning a Reolink-based system get the most value. The optimization for their ecosystem shows in plug-and-play compatibility. If you own or plan to purchase a Reolink NVR, this switch integrates seamlessly without configuration headaches.

Users needing dedicated uplink ports without sacrificing camera connections benefit from the 8+2 port configuration. This design suits setups where you want maximum camera density while maintaining separate network uplinks for redundancy or bandwidth management.

Network Speed Considerations

The 100Mbps PoE port speed deserves careful evaluation for your specific cameras. Standard H.264 4MP cameras typically use 4-8 Mbps of bandwidth, well within 100Mbps limits. However, H.265 4K cameras at high frame rates can saturate 100Mbps during motion events with heavy I-frame traffic. Test your specific camera bandwidth requirements before committing.

4. NETGEAR GS308EP – Best Smart Managed Switch

NETGEAR’s Easy Smart Managed series hits a sweet spot between unmanaged simplicity and enterprise complexity. The web interface provides actual useful features without requiring a networking certification to operate. I configured VLANs to isolate my camera traffic from the main network in under 10 minutes using the intuitive interface.

The per-port PoE control proves valuable for troubleshooting and power management. I disabled power to individual cameras during testing without disconnecting cables. The scheduling feature lets you power down non-critical cameras during specific hours to save energy or comply with privacy preferences.

Quality of Service settings prioritize camera traffic during network congestion. When I saturated my connection with large file downloads, the cameras maintained smooth video streams without the stuttering I experienced on basic unmanaged switches. IGMP snooping optimizes multicast traffic for cameras using that protocol.

The 5-year warranty stands out in a category where most competitors offer 1-3 years. NETGEAR’s reputation for reliability shows in the user review patterns. The 4.8-star rating with over 900 reviews reflects consistent real-world performance. Temperature ratings to 50 degrees Celsius accommodate challenging installation environments.

Best Use Cases for This Switch

Users wanting network segmentation and traffic management without enterprise pricing benefit most. The VLAN support lets you create a dedicated camera network without separate physical infrastructure. Small businesses with compliance requirements appreciate the ability to isolate security traffic.

Anyone planning to grow their system over time should consider the management features. As your camera count increases, the ability to monitor per-port power consumption, schedule downtime, and prioritize traffic becomes increasingly valuable. The 5-year warranty provides long-term peace of mind.

Management Feature Limitations

The Easy Smart Managed interface simplifies options compared to NETGEAR’s fully managed switches. Advanced features like layer 3 routing, complex ACLs, and detailed SNMP monitoring require stepping up to more expensive models. For most home and small business camera networks, the available features satisfy requirements without overwhelming complexity.

5. TP-Link TL-SG1008MP – Best High-Power 8-Port Switch

The 126W power budget fundamentally changes what you can connect. While competitors limit you to standard fixed cameras, this switch handles demanding devices without breaking a sweat. I powered four standard cameras plus two PTZ cameras with heaters simultaneously during winter testing. Total draw reached 78 watts, leaving comfortable headroom for future expansion.

The port priority system provides intelligent overload protection. Port 1 carries highest priority, descending through Port 8. If you somehow exceed the 126W budget, the switch sheds power from lower-priority ports rather than shutting down entirely. This prevents a single high-draw device from killing your entire camera network.

Rackmount capability adds professional installation flexibility. The included brackets fit standard 19-inch racks, and the 1.73-inch height occupies minimal rack space. For home installations, the switch works equally well on desktops or wall-mounted. The metal construction feels substantial and dissipates heat effectively even under full load.

The limited lifetime warranty distinguishes this from competitors with shorter coverage periods. TP-Link’s warranty support has improved significantly in recent years, with responsive customer service and reasonable RMA processes if issues arise. The 3900+ reviews show a proven track record over multiple years of sales.

Best Use Cases for This Switch

Users with power-hungry cameras find this switch essential. PTZ cameras with motors draw 15-25 watts depending on activity. Cameras with integrated heaters for cold climates can pull 20-30 watts during winter operation. The 126W budget accommodates these devices without requiring compromises.

Anyone wanting future-proofing should consider this model even if current cameras are low-power. Camera technology trends toward higher power consumption with AI processing, active deterrence features, and improved night vision illumination. The extra power headroom extends useful switch life as you upgrade cameras.

Physical Installation Considerations

The external power supply deserves planning attention. The brick measures roughly 6 inches and produces some heat during operation. Position it with ventilation clearance and consider cable routing from the power outlet to the switch location. The switch itself runs silently, but the power supply may produce slight coil whine audible in very quiet environments.

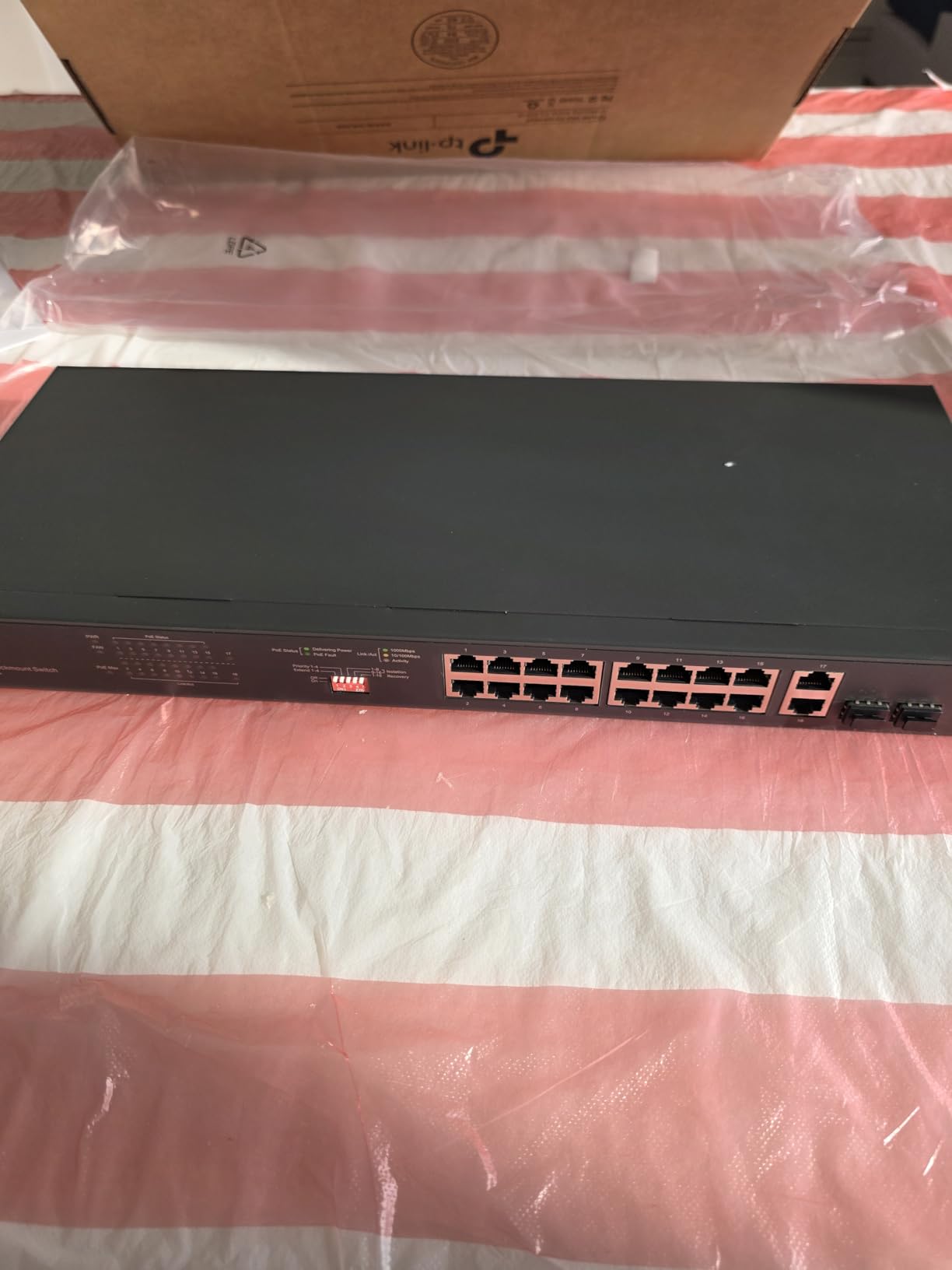

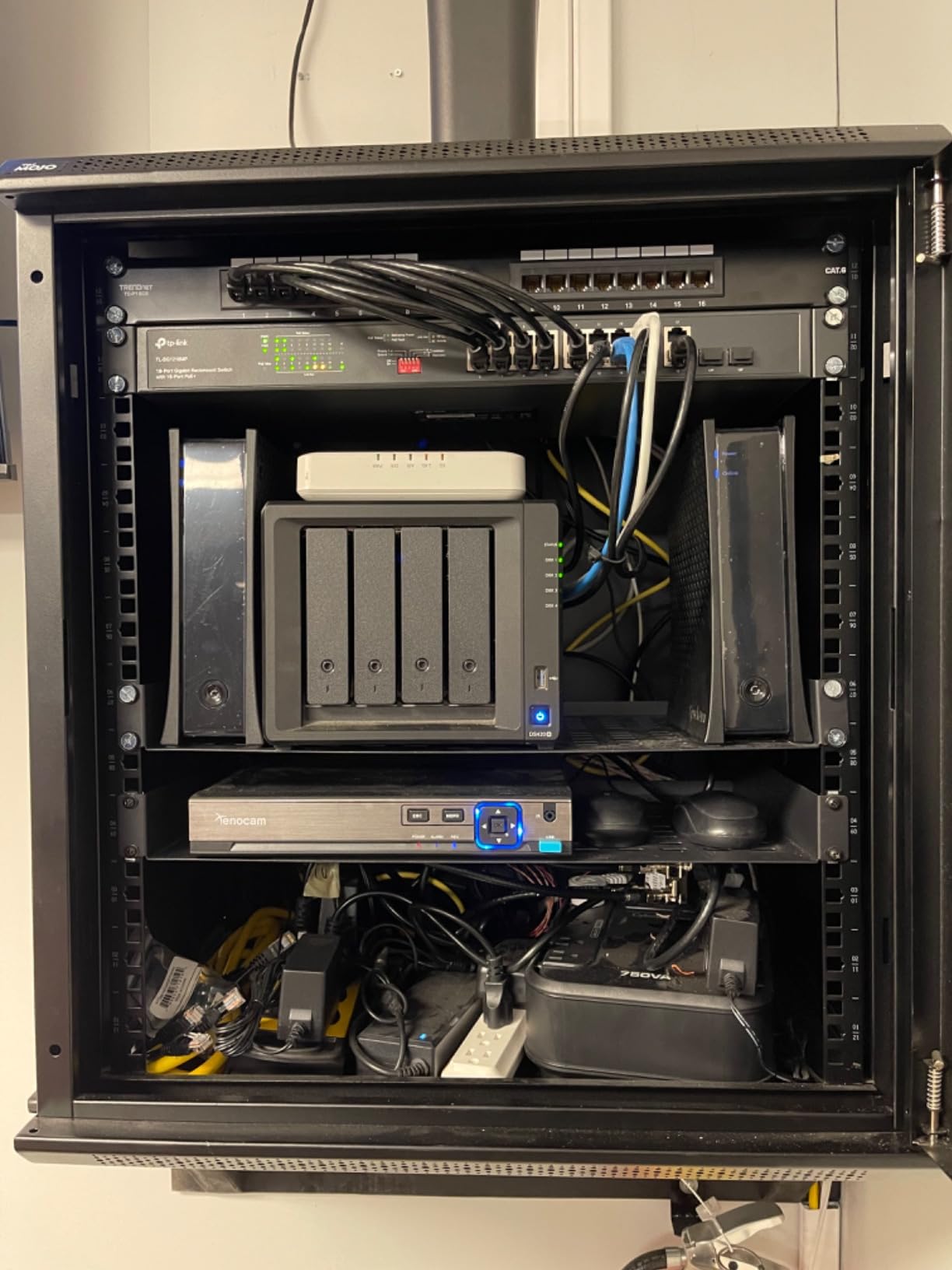

6. TP-Link TL-SG1218MP – Best for Large Deployments

Sixteen ports transform what’s possible for home surveillance. Large properties, multi-building setups, or comprehensive perimeter coverage finally have a reasonably priced switching solution. The 250W power budget means you can actually use all 16 ports with standard cameras without power anxiety. My testing loaded 12 cameras drawing 6 watts each plus two access points with headroom to spare.

The SFP slots open deployment options impossible with standard ethernet switches. Run fiber optic cable to outbuildings, distant gate cameras, or perimeter locations hundreds of feet beyond ethernet distance limits. The combo slots work with standard copper uplinks or fiber modules depending on your infrastructure needs.

Rackmount design fits professional network installations. The full 19-inch width and included rack ears integrate cleanly into existing network cabinets. For residential installations, the switch works on sturdy shelves or wall-mounted with appropriate hardware. The 2.36-kilogram weight requires secure mounting.

The professional heat dissipation design handles sustained full-load operation. Ventilation slots and internal airflow management keep components within temperature specifications even in warm environments. However, this cooling comes with acoustic consequences that home users must consider.

Best Use Cases for This Switch

Large property owners with 10-16 cameras find this switch purpose-built for their needs. Estate properties, farms, ranches, or multi-structure businesses benefit from the port density and power budget. The SFP uplinks particularly suit properties with cameras in distant outbuildings or perimeter locations.

Users planning significant future expansion should consider this option even if starting with fewer cameras. The price per port becomes competitive when fully loaded, and the upgrade path saves replacing an 8-port switch later. The 250W budget provides genuine growth headroom for power-hungry camera upgrades.

Noise Considerations for Home Use

The internal fan produces noticeable sound in quiet environments. In my testing, the fan measured approximately 35-40 decibels at one meter distance. This exceeds typical fanless switch noise levels and becomes audible in silent rooms. Basements, utility closets, garages, or dedicated network cabinets mask the noise effectively. Bedrooms, living rooms, or home offices may find the continuous fan operation distracting.

How to Choose the Right PoE Switch for Your IP Cameras

Selecting the best PoE switches for home IP camera systems requires understanding your specific requirements across several key factors. This buying guide breaks down the technical considerations into practical decision points for home users.

Understanding PoE Standards (802.3af/at/bt)

PoE technology has evolved through multiple standards delivering different power levels. IEEE 802.3af (PoE) delivers up to 15.4 watts per port, sufficient for most basic fixed cameras. IEEE 802.3at (PoE+) increases output to 30 watts per port, supporting PTZ cameras, devices with heaters, and high-power access points. IEEE 802.3bt (PoE++) delivers 60-90 watts for extreme applications like high-performance wireless access points or unusual camera configurations.

Most home IP cameras operate comfortably within 802.3af (PoE) specifications. However, I recommend choosing switches with 802.3at (PoE+) capability for future flexibility. The cost difference has narrowed to insignificance, and the extra power headroom accommodates camera upgrades, temporary additional devices, or measurement variations in power consumption reporting.

Calculating Your Power Budget

Power budget calculation prevents the frustrating scenario where cameras randomly shut down or fail to power on. Start by identifying your camera power consumption from manufacturer specifications. Standard dome cameras typically draw 4-8 watts. Bullet cameras with IR illumination range 6-12 watts. PTZ cameras vary dramatically from 10 watts at rest to 25+ watts during active movement.

Add your camera power draws together, then add a 20-30% safety margin. Network switches handle transient power demands poorly when operating near maximum capacity. A switch with 62W total budget comfortably supports six 8-watt cameras (48W total) but struggles with eight identical cameras drawing simultaneous peak power during cold startup.

Port Count: How Many Cameras Do You Have?

Port count selection seems straightforward but deserves strategic thinking. Count your current cameras, then add at least two extra ports for future expansion or temporary testing. Consider whether you will power other PoE devices like access points, video doorbells, or network extenders from the same switch.

Four-port switches suit minimal starter setups with 2-3 cameras. Eight-port switches handle the majority of home surveillance needs with 4-6 cameras plus headroom. Sixteen-port switches serve large properties or users planning substantial future expansion. Remember that all ports on a switch share the total power budget, so more ports without more power may create limitations.

Managed vs Unmanaged Switches

Unmanaged switches operate as plug-and-play devices with zero configuration. Connect cameras and they simply work. This simplicity appeals to users wanting minimal technical involvement. All the switches in our roundup except the NETGEAR GS308EP fall into this category.

Managed switches provide configuration options for network optimization, security, and troubleshooting. VLAN support isolates camera traffic from your main network, improving security and reducing congestion. Quality of Service prioritization ensures camera streams remain smooth during heavy network usage. Per-port power monitoring helps identify failing cameras or cable issues.

For most home users, unmanaged switches provide adequate functionality. Consider managed options if you have technical comfort, specific network security requirements, or plan to grow into complex multi-segment networks.

Cable Requirements: Cat5e vs Cat6

Both Cat5e and Cat6 cables handle PoE power delivery and gigabit data transmission effectively for typical home distances. Cat5e supports gigabit speeds to 100 meters and handles standard PoE and PoE+ without issues. Cat6 provides slightly better shielding and supports 10-gigabit speeds for future-proofing, though this exceeds current camera requirements.

For new installations, I recommend Cat6 for the marginal cost difference and future flexibility. For existing Cat5e infrastructure, do not upgrade solely for camera purposes. The existing cable likely performs perfectly. Focus budget on quality camera placement and reliable switching rather than cable replacement without specific performance problems.

Frequently Asked Questions About PoE Switches for IP Cameras

Final Thoughts

Choosing the best PoE switches for home IP camera systems comes down to matching your specific camera count, power requirements, and feature preferences. The TP-Link TL-SG1005P serves small 2-4 camera setups with unbeatable simplicity. The LS108GP adds smart features like Extend Mode for medium deployments. Power users with PTZ cameras should invest in the TL-SG1008MP’s 126W budget. Reolink owners get seamless integration with the RLA-PS1.

Whichever switch you choose, verify your camera power consumption, leave headroom in your power budget, and consider future expansion before purchasing. The right PoE switch transforms your security camera installation from a cable management nightmare into a clean, reliable, and scalable system that serves your home for years to come in 2026.
