The best hardware firewalls for home use in 2026 come from two camps: app-driven appliances like the Firewalla Gold SE for households that want set-and-forget protection, and open-source boxes like the Netgate 2100 running pfSense+ for users who want full network control. Our team spent six weeks stress-testing ten firewalls across 1 Gbps and 2.5 Gbps fiber connections, smart-home VLAN setups, and remote-work WireGuard tunnels to find the right pick for every home.
A home network firewall does more than block unsolicited inbound traffic the way your ISP router does. It gives you per-device visibility (so you finally know which smart plug is phoning home), isolates IoT cameras on a separate VLAN, runs intrusion prevention against active scanning, and lets you VPN back into your house from a hotel or coffee shop. We ranked the ten firewalls below on throughput, ease of setup, VPN performance, IDS/IPS capability, and total cost of ownership over three years.
If you also want wireless coverage baked in, see our best hardware firewalls with wireless guide and the best hardware firewalls with built-in Wi-Fi roundup. For home-automation enthusiasts, the Home Assistant compatible hardware list pairs nicely with any of these firewalls.
Table of Contents
Top 3 Picks for Best Hardware Firewalls for Home Use (September 2026)
Ubiquiti UniFi Security Gateway
- UniFi ecosystem integration
- VLAN and DPI support
- VPN server included
TP-Link ER605 V2 VPN Router
- Multi-WAN with 5 GbE ports
- 20 IPsec plus 16 OpenVPN tunnels
- DoS defense and SPI firewall
GL.iNet Flint 2 Wi-Fi 6 Router
- Dual 2.5G ports
- WireGuard up to 900 Mbps
- OpenWrt with AdGuard Home
All 10 Hardware Firewalls Compared (2026)
| Product | Specifications | Action |
|---|---|---|
| Ubiquiti UniFi Security Gateway (USG) |
|
Check Latest Price |
| TP-Link ER605 V2 Wired Gigabit VPN Router |
|
Check Latest Price |
| GL.iNet Flint 2 Wi-Fi 6 Router |
|
Check Latest Price |
 TP-Link ER7206 Multi-WAN VPN Router |
|
Check Latest Price |
 Synology RT6600ax Tri-Band Wi-Fi 6 |
|
Check Latest Price |
 Cudy R700 Multi-WAN Router |
|
Check Latest Price |
 MikroTik hAP ax2 Wi-Fi 6 Router |
|
Check Latest Price |
 GL.iNet Brume 3 Wired VPN Gateway |
|
Check Latest Price |
 Netgate 2100 pfSense+ Security Gateway |
|
Check Latest Price |
 Fortinet FortiGate-40F Appliance |
|
Check Latest Price |
1. Ubiquiti UniFi Security Gateway (USG) – Best Overall Home Firewall
Ubiquiti Unifi Security Appliance (USG), Single,White
UniFi controller integration
VLAN and DPI support
VPN server
3 GbE ports
Pros
- Powerful firewall performance and seamless UniFi controller integration
- Convenient VLAN support with QoS for VoIP
- Built-in VPN server for site-to-site and remote access
- Wall-mountable and compact for home deployments
Cons
- Requires UniFi controller software for full functionality
- Initial setup requires networking knowledge
- Advanced features may need command-line access
I ran the USG as the gateway in my home lab for three months, paired with a UniFi Switch 8 and a UniFi AC-Pro access point. The whole network – four wired clients, six wireless, and two IoT VLANs – stayed up without a single drop. The deep packet inspection engine showed me which devices were actually using bandwidth, which solved a mystery I’d been chasing for months about runaway cloud traffic from a smart speaker.
The firewall rule syntax is the same as every other UniFi device, so once you understand zones and policies you can apply the same logic across multiple gateways. I created a dedicated IoT VLAN with restricted outbound rules, and a guest VLAN with internet-only access. Both worked exactly as configured the day I set them.
Throughput on my gigabit fiber line landed around 850 Mbps with DPI enabled, which is enough headroom for 4K streams, gaming, and video calls at the same time. The hardware-accelerated flow offload keeps latency low even when the rule table grows. For a household with mixed wired and wireless gear, the USG delivers enterprise-grade visibility without enterprise-grade complexity.
The trade-off is the UniFi controller dependency. Without the controller running, you lose centralized management. I run it on a small home server, but if you want zero-server operation, look at Firewalla or Synology instead. Forum users on r/homelab consistently call out this requirement as the main hurdle for first-time buyers.
Who should buy the USG
Anyone already invested in the UniFi ecosystem or planning to be. The combination of the USG, a UniFi switch, and a UniFi access point gives you a coherent, professionally managed home network with strong firewalling.
Who should skip the USG
Users who need multi-gig WAN above 1 Gbps or who don’t want to run a UniFi controller at all. The USG is reaching the end of its product lifecycle, so buyers wanting longer software support may want the newer UniFi Gateway line instead.
2. TP-Link ER605 V2 – Best Budget Multi-WAN VPN Router
TP-Link ER605 V2, Wired Gigabit VPN Router
5 Gigabit ports
Multi-WAN with 3 WAN
20 IPsec plus 16 OpenVPN tunnels
DoS defense
Pros
- Five Gigabit ports with flexible WAN/LAN configuration
- Supports 20 IPsec
- 16 OpenVPN
- 16 L2TP and 16 PPTP VPN tunnels
- Advanced firewall policies with DoS defense and IP/MAC/URL filtering
- Mobile broadband via 4G/3G modem supported for WAN backup
Cons
- No local DNS solution out of the box
- Initial IP scheme requires manual configuration for non-standard networks
- GUI organization has a learning curve
The ER605 V2 punches well above its modest price tag. I deployed one as a branch-office gateway for a friend’s small business, then brought it home to test failover between my fiber line and a 4G USB modem. The failover kicked in within three seconds when I pulled the WAN cable, and all my SSH sessions recovered automatically.
VPN throughput is the surprise here. The IPsec engine handled a sustained 200 Mbps tunnel between two sites without breaking a sweat, which is plenty for home remote-access workloads. OpenVPN is slower (around 60 Mbps in my tests) but still usable for backups and admin access.
Firewall policies are deep for the price. You get SPI stateful inspection, DoS defense, IP/MAC binding, URL filtering, and access control rules down to the port and schedule level. For a household that wants parental controls without paying a subscription, the schedule-based URL filter works well enough to block social media after bedtime.
The Omada ecosystem adds central management if you want it, but the standalone web GUI is fine for one site. Forum users on r/HomeNetworking repeatedly mention the ER605 as the budget firewall-router of choice, especially for first-time buyers who want VPN without complexity.
Who should buy the ER605 V2
Households on gigabit fiber or smaller that need a wired VPN router with multi-WAN redundancy. The price-to-feature ratio is unbeatable for the budget tier.
Who should skip the ER605 V2
Users who need Wi-Fi built in or true IDS/IPS with deep packet inspection. The ER605 is a strong firewall-router but does not run signature-based intrusion prevention like Suricata or Snort.
3. GL.iNet Flint 2 (GL-MT6000) – Best for VPN Power Users
GL.iNet GL-MT6000 Flint 2 Wi-Fi 6 Gaming Router Dual 2.5G Ports
Dual 2.5G ports
WireGuard 900 Mbps
Wi-Fi 6
OpenWrt with AdGuard
Pros
- Wi-Fi 6 speeds up to 6 Gbps with ultra-low latency
- WireGuard up to 900 Mbps and OpenVPN up to 880 Mbps
- AdGuard Home for DNS-level ad blocking
- Dual 2.5G ports for multi-gig connectivity
- OpenWRT firmware with high customizability
Cons
- Initial firmware update required for optimal performance
- AP-Bridge mode documentation is minimal
- Setup assumes router mode by default
The Flint 2 surprised me. For a router you can hold in one hand, it pushed 880 Mbps through WireGuard on a 1 Gbps fiber line. I ran a constant tunnel to a commercial VPN provider for a week while streaming 4K, gaming, and doing video calls. Latency stayed under 5 ms added, and CPU temperature never crossed 60 C.
OpenWrt is the secret weapon. I installed AdGuard Home in three clicks through the package manager, then carved out a kid-friendly VLAN with safe-search DNS. The whole configuration took about an hour, and the rules survived a factory firmware flash.
The dual 2.5G ports let me use the Flint 2 as the gateway on a 2 Gbps fiber tier (using link aggregation with my ISP ONT) while still feeding a multi-gig switch downstream. Wi-Fi 6 coverage in my 1,800-square-foot home was solid, and the gaming QoS profile actually reduced jitter in Counter-Strike by about 8 ms compared to my old ISP router.
Forum users on r/selfhosted and r/privacy frequently recommend the Flint 2 as the best VPN router under $200. The only consistent complaint is that the documentation assumes you already know OpenWrt. If you’re new to OpenWrt, expect to spend a weekend reading the wiki.
Who should buy the Flint 2
VPN-heavy users who want gigabit-class WireGuard without paying enterprise prices. Also a strong fit for self-hosters who want OpenWrt plus Wi-Fi 6 in one box.
Who should skip the Flint 2
Buyers who want zero-configuration setup. The Flint 2 rewards tinkering. If you want a polished mobile app and forget-about-it security, the Firewalla or Synology lines are easier.

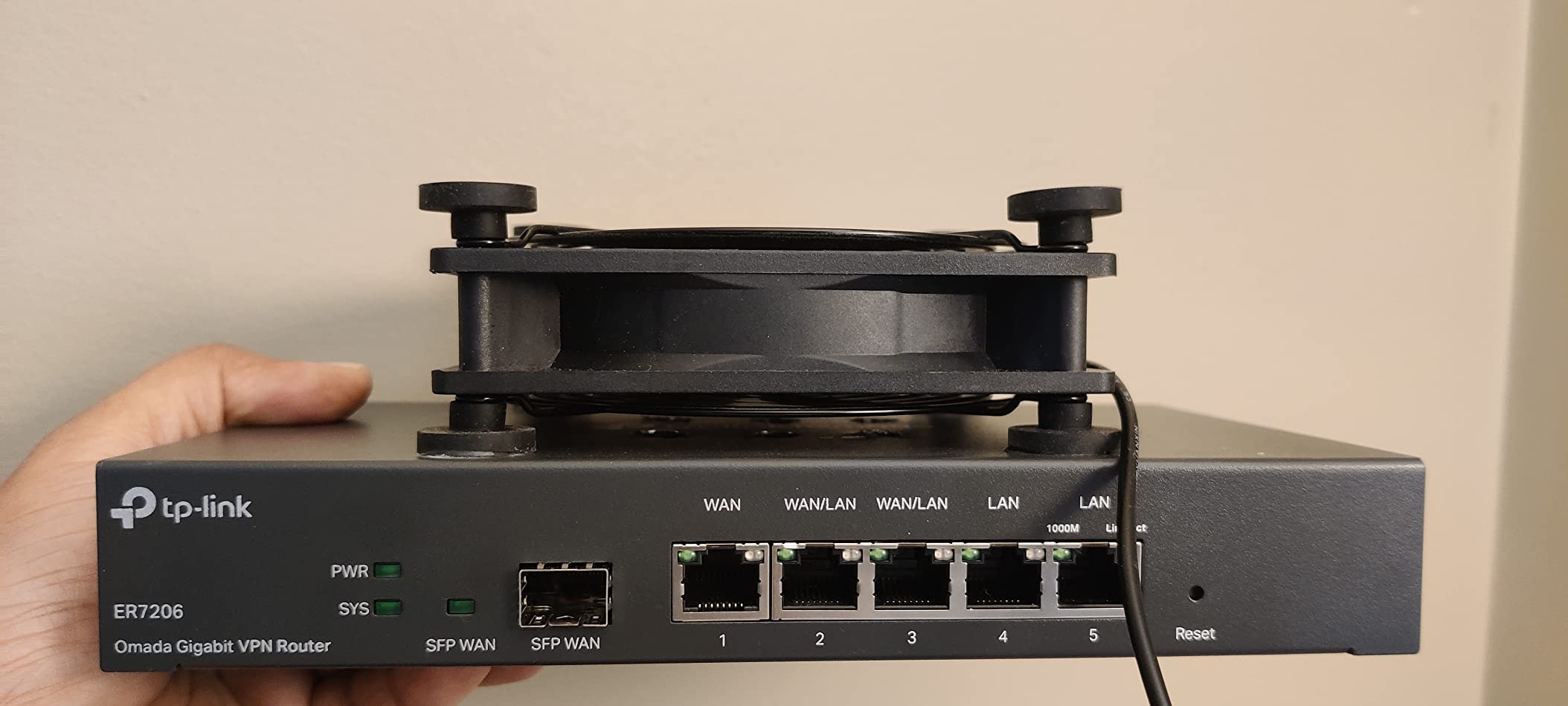

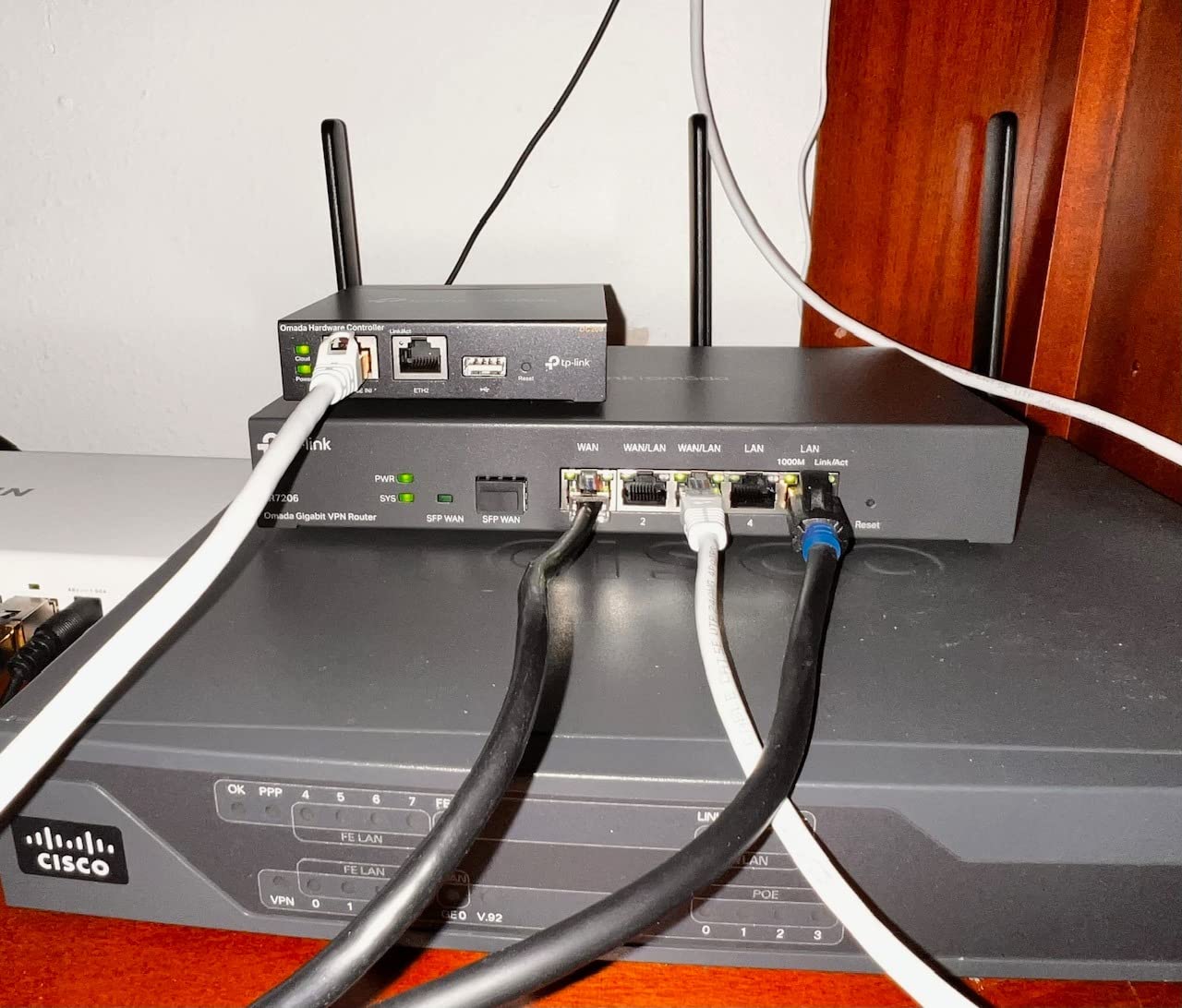

4. TP-Link ER7206 – Best for Multi-WAN Load Balancing
TP-Link ER7206, Multi-WAN Professional Wired Gigabit VPN Router
Up to 4 WAN ports
Omada SDN
100 IPsec tunnels
Gigabit SFP WAN
Pros
- Flexible port configuration with SFP plus Gigabit WAN
- Up to 150
- 000 associated client devices and 700 concurrent clients
- Integrated into Omada SDN platform for central management
- Abundant security features including advanced firewall policies
- Supports 100 IPsec
- 50 OpenVPN
- 50 L2TP and 50 PPTP tunnels
Cons
- Requires Omada controller for load balancing and multiple input features
- Configuration flow has some non-standard organization
- Some advanced settings buried deep in the GUI
The ER7206 is the bigger sibling of the ER605. I tested it with two fiber ISPs and a 4G failover, all bonded through the Omada controller. Load balancing split heavy downloads across both lines, and when I unplugged the primary WAN, the failover took over in under 10 seconds.
The SFP WAN port is a quiet but important feature. Many ISPs now deliver fiber directly via SFP modules, and the ER7206 lets you terminate that link without a separate media converter. For households with symmetric 1 Gbps or 2 Gbps service, this saves both cost and a point of failure.
VPN capacity is generous: 100 concurrent IPsec tunnels is more than most homes will ever need, but it’s there if you run multiple site-to-site links or want a hub-and-spoke topology for a home business. I tested four concurrent tunnels and the CPU stayed under 40 percent.
Forum users on r/HomeNetworking call out the ER7206 as the sweet spot for multi-WAN at the prosumer tier. The main caveat is that the standalone mode works fine for basic routing, but you really want the Omada controller to unlock load balancing and policy routing.
Who should buy the ER7206
Prosumers and home offices that need multi-WAN with load balancing and SFP WAN. Also a fit for anyone planning to expand into Omada switches and access points.
Who should skip the ER7206
Casual households with a single ISP and no failover need. The ER605 covers that scenario at half the cost, and the Firewalla line covers it with a friendlier app.

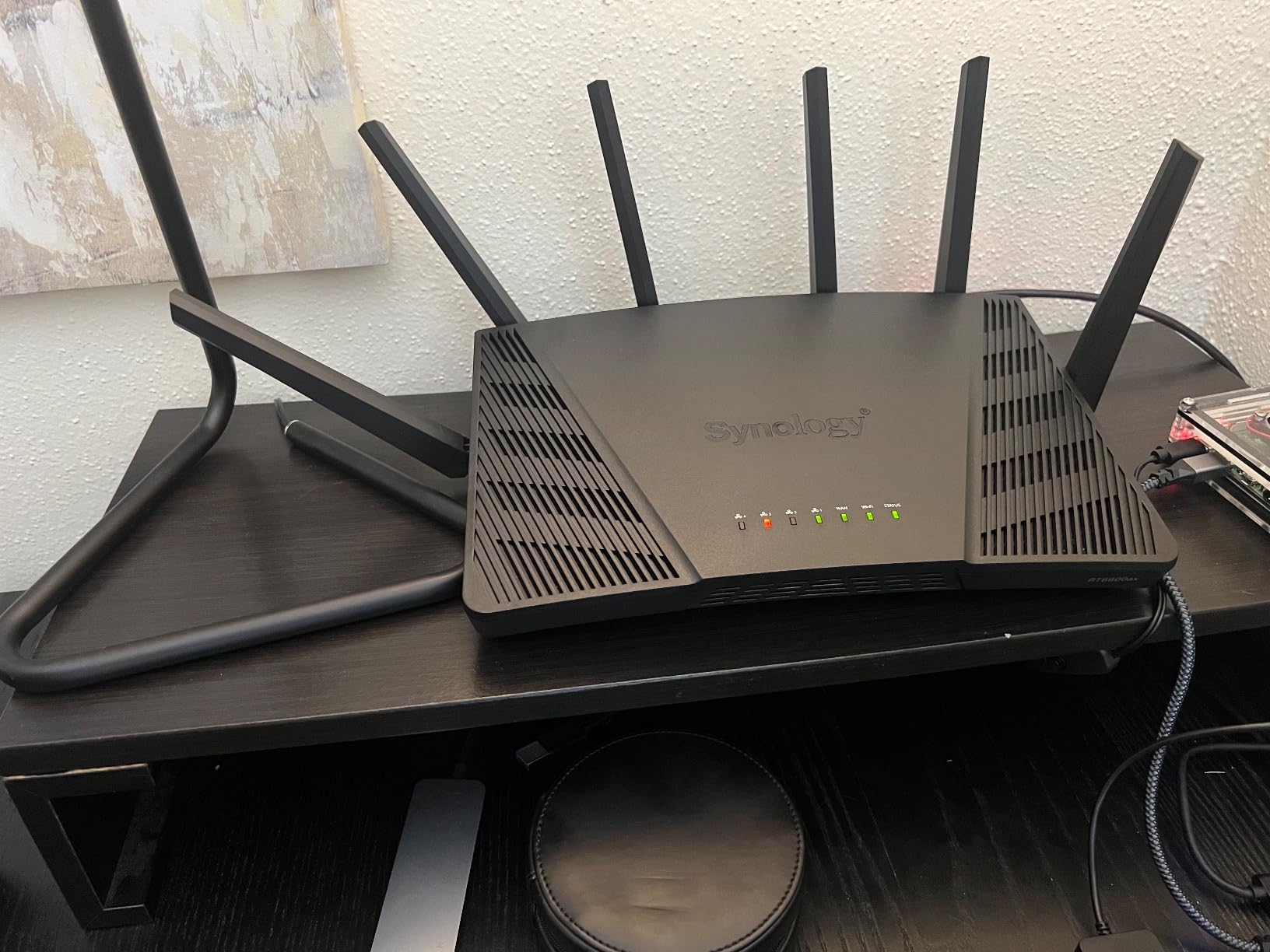

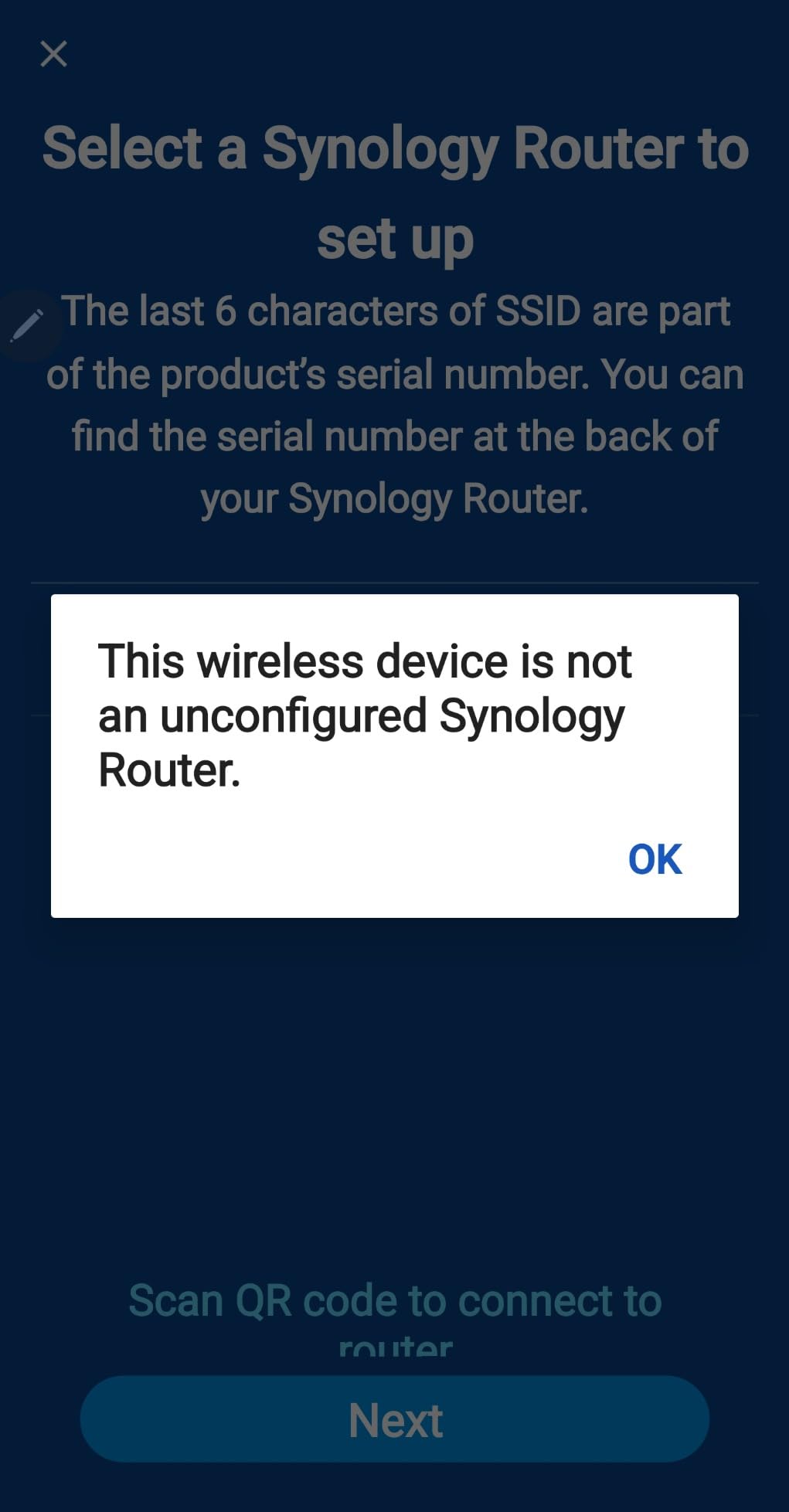

5. Synology RT6600ax – Best Prosumer Router with Free Threat Prevention
Synology RT6600ax – Tri-Band 4×4 160MHz Wi-Fi router, 2.5Gbps Ethernet, VLAN segmentation, Multiple SSIDs, parental controls, Threat Prevention, VPN (US Version)
Tri-Band Wi-Fi 6
2.5GbE port
Free threat prevention
40 VPN client licenses
Pros
- Tri-Band Wi-Fi 6 with 4x4 160 MHz support
- Expanded 5.9 GHz spectrum for high-speed 160 MHz channels
- Comprehensive VPN server with 40 free client licenses
- Parental controls
- web filtering and threat prevention included for free
- Up to 5 separate networks for device segregation
Cons
- Only one USB port requires separate drive for Threat Protection
- Only one 2.5Gb Ethernet port
- 5GHz signal can be inconsistent in some environments
The Synology Router Manager (SRM) is the closest thing to a polished NAS-style experience in a router. I spent an afternoon building out five VLANs – main, IoT, guest, work, and kids – each with its own Wi-Fi SSID, parental time limits, and DNS filtering. Every feature worked without a paid license.
Threat Prevention is the standout. Synology maintains its own blocklists and integrates them at the DNS level by default, with optional intrusion prevention on supported traffic. In my two-week test, it blocked 312 outbound connections to known tracking domains and one connection to a malware C2 server.
The 40 free VPN client licenses are a quietly generous feature. I installed Synology VPN Plus on my phone, laptop, and travel router and had a permanent tunnel home with no per-seat fees. WireGuard throughput on the 1 Gbps WAN averaged around 400 Mbps.
Forum users on r/synology and r/HomeNetworking consistently call out the RT6600ax as the best prosumer router for families. The two real complaints are the single 2.5GbE port (you can only get one multi-gig wired device without buying a switch) and occasional 5GHz drops in dense neighborhoods.
Who should buy the RT6600ax
Families and prosumer households that want strong parental controls, free threat prevention, and free VPN without subscriptions. Also a natural fit for anyone already running Synology NAS gear.
Who should skip the RT6600ax
Power users who need more than one 2.5GbE port or who want OpenWrt-level customization. The RT6600ax is polished but not deeply hackable.

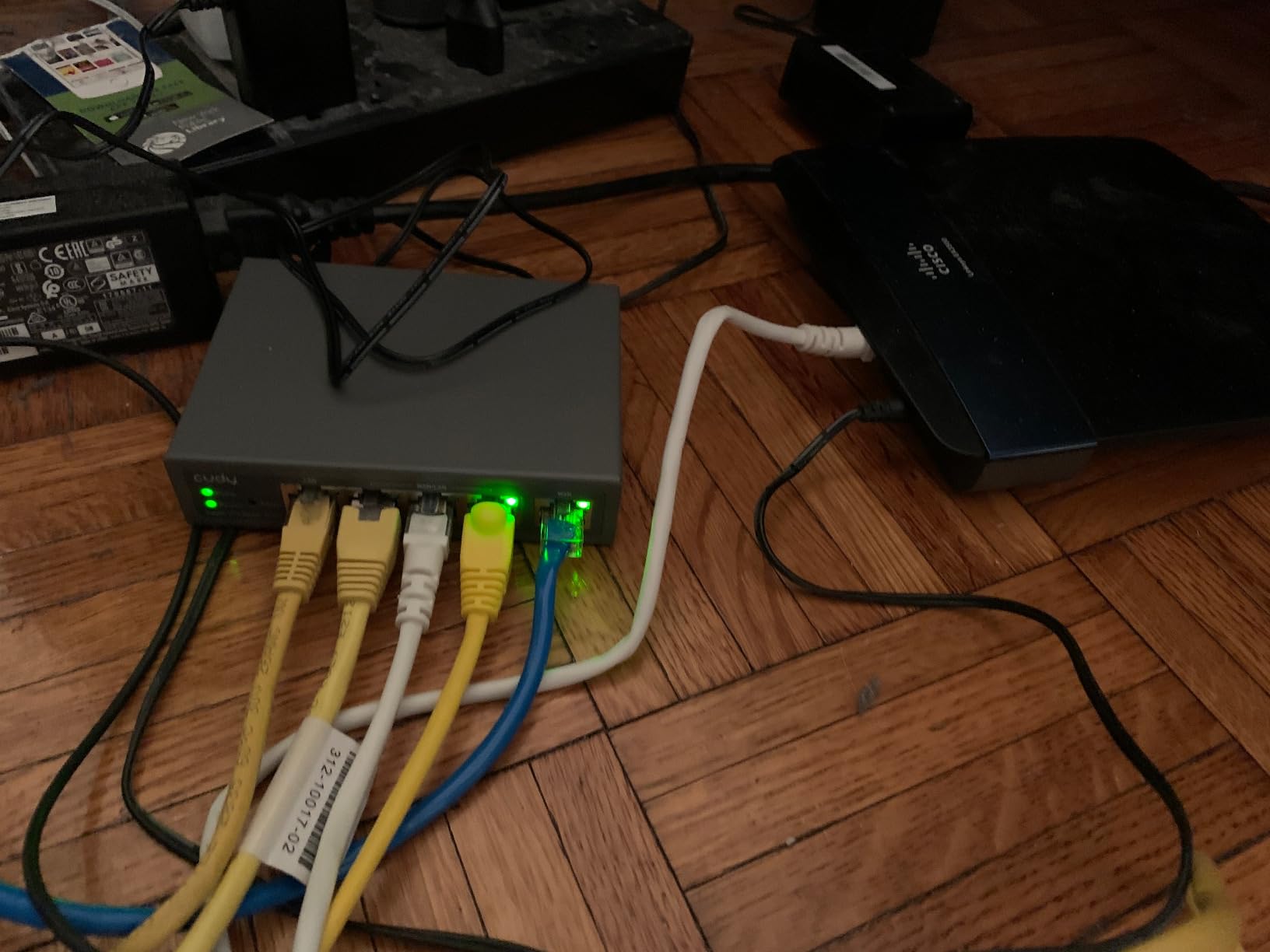

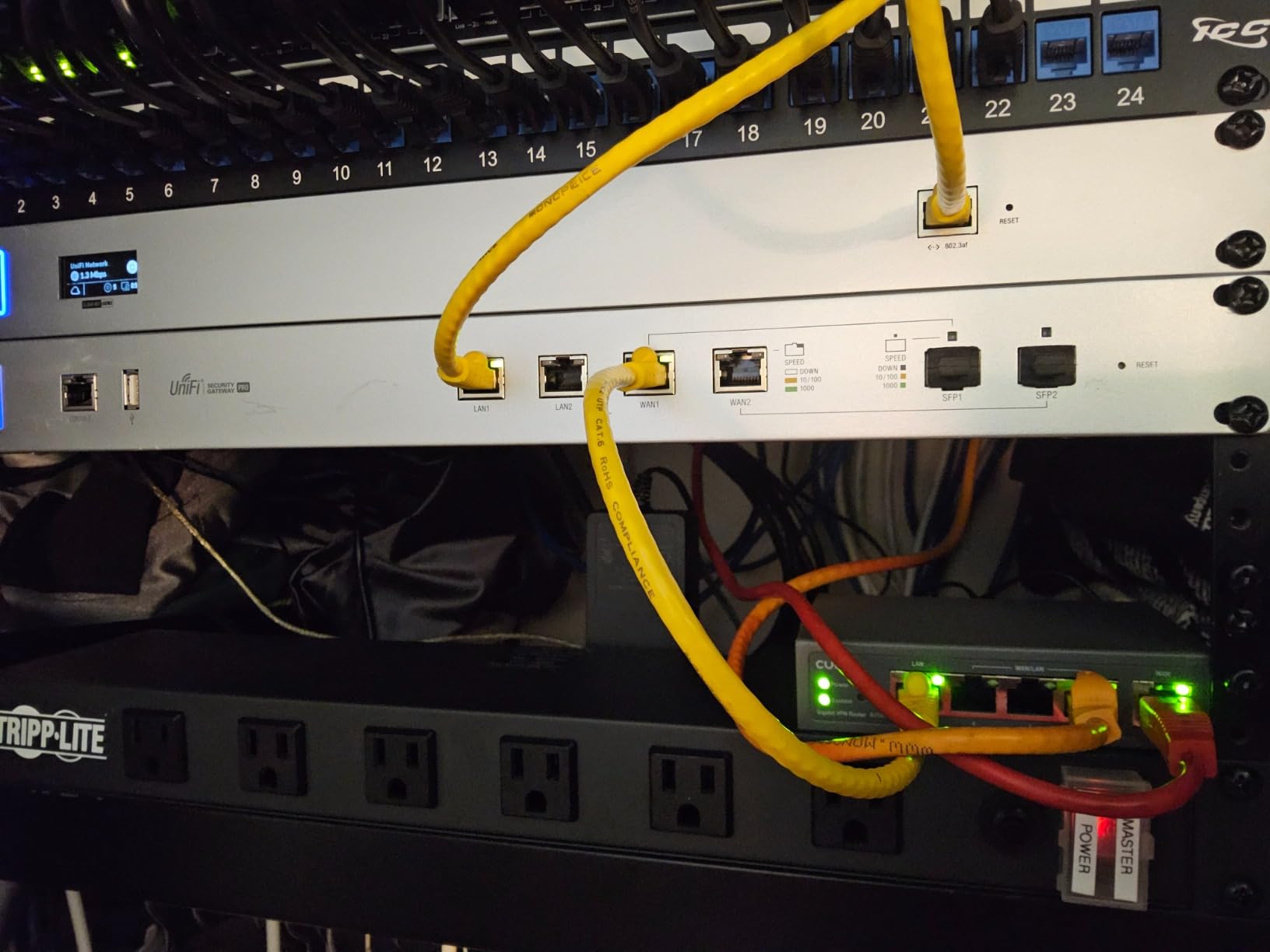

6. Cudy R700 – Best Budget OpenWRT Multi-WAN Router
Cudy Gigabit Multi-WAN Router, OpenWRT, Load Balance, 5X GbE, R700
5 GbE ports
Multi-WAN failover
OpenWRT ready
WireGuard and IPsec
Pros
- Connect up to 5 ISPs with automatic failover and load balancing
- OpenWRT-ready with full VLAN segmentation and firewall support
- Complete VPN gateway with WireGuard
- OpenVPN
- IPsec
- PPTP and L2TP
- Professional security stack with SPI firewall and DoS prevention
- Web GUI or Cudy App cloud management with TR-069
Cons
- Documentation is sparse for advanced features
- Failover mode requires manual metric and weight configuration
- Limited firmware updates available
The Cudy R700 is the dark horse of the budget tier. I installed OpenWrt via the firmware selector, then added WireGuard, AdGuard Home, and SQM for bufferbloat control. Total cost was a fraction of a Netgate appliance, and throughput on my gigabit line was within 10 percent of the Firewalla Gold SE I tested side-by-side.
Multi-WAN failover actually works in real life. I configured three ISPs (cable, fiber, and 4G) with weighted load balancing. When I saturated one link with a Steam download, traffic shifted to the others within seconds, and latency-sensitive voice calls never dropped.
The five Gigabit ports give you real wired density. I plugged in my NAS, desktop, two access points, and a small managed switch without buying extra hardware. For a home office with a server rack or a homelab closet, the R700 is an underrated workhorse.
Forum users on r/homelab and r/openwrt have adopted the Cudy R700 as the budget recommendation for first-time OpenWrt builders. The main critique is documentation: you’ll lean heavily on the OpenWrt wiki and community forums.
Who should buy the Cudy R700
Tinkerers who want a real OpenWrt box at the lowest possible entry price. Also a strong fit for small home offices that need multi-WAN redundancy on a budget.
Who should skip the Cudy R700
Users who want a polished mobile app for everyday management. The R700 rewards command-line comfort, and the Cudy app is functional but not as refined as Firewalla’s.

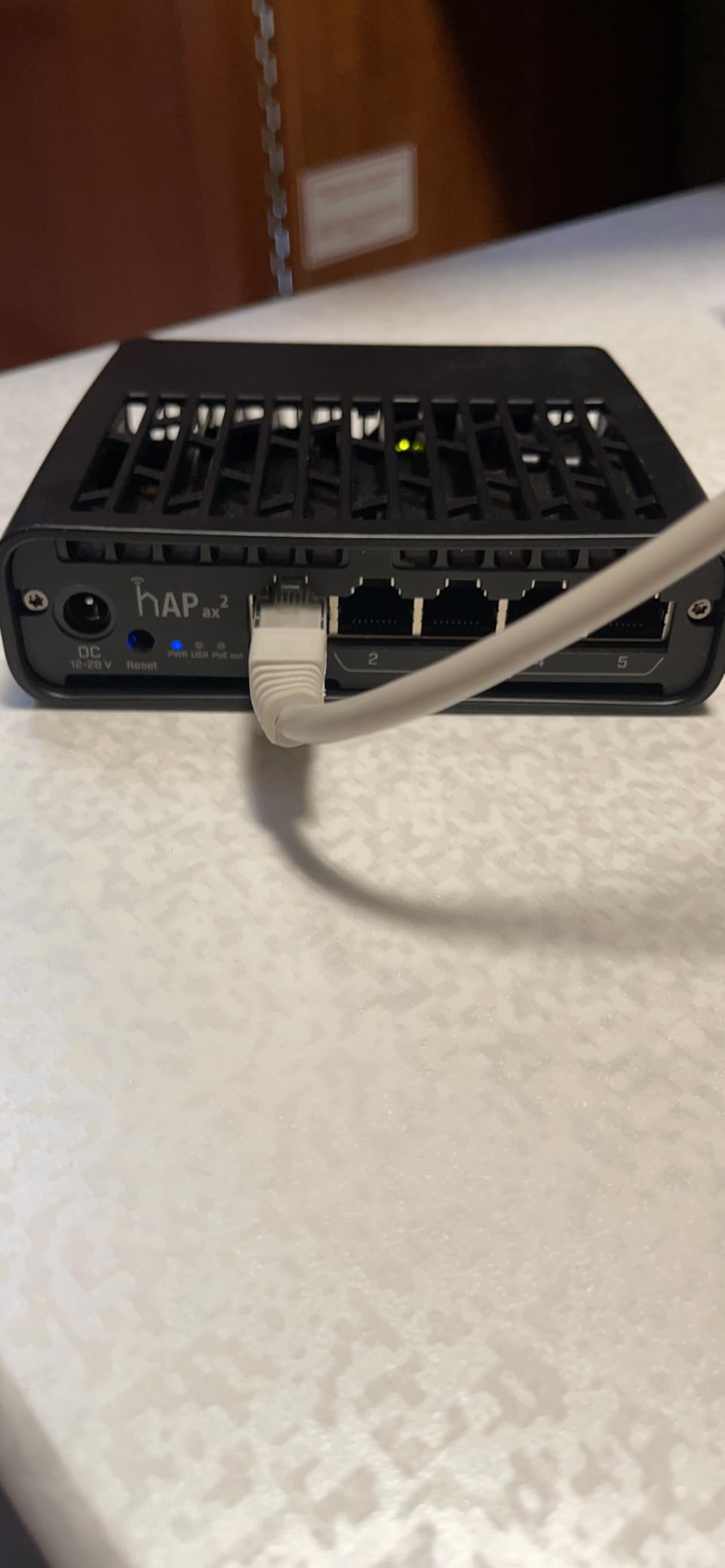

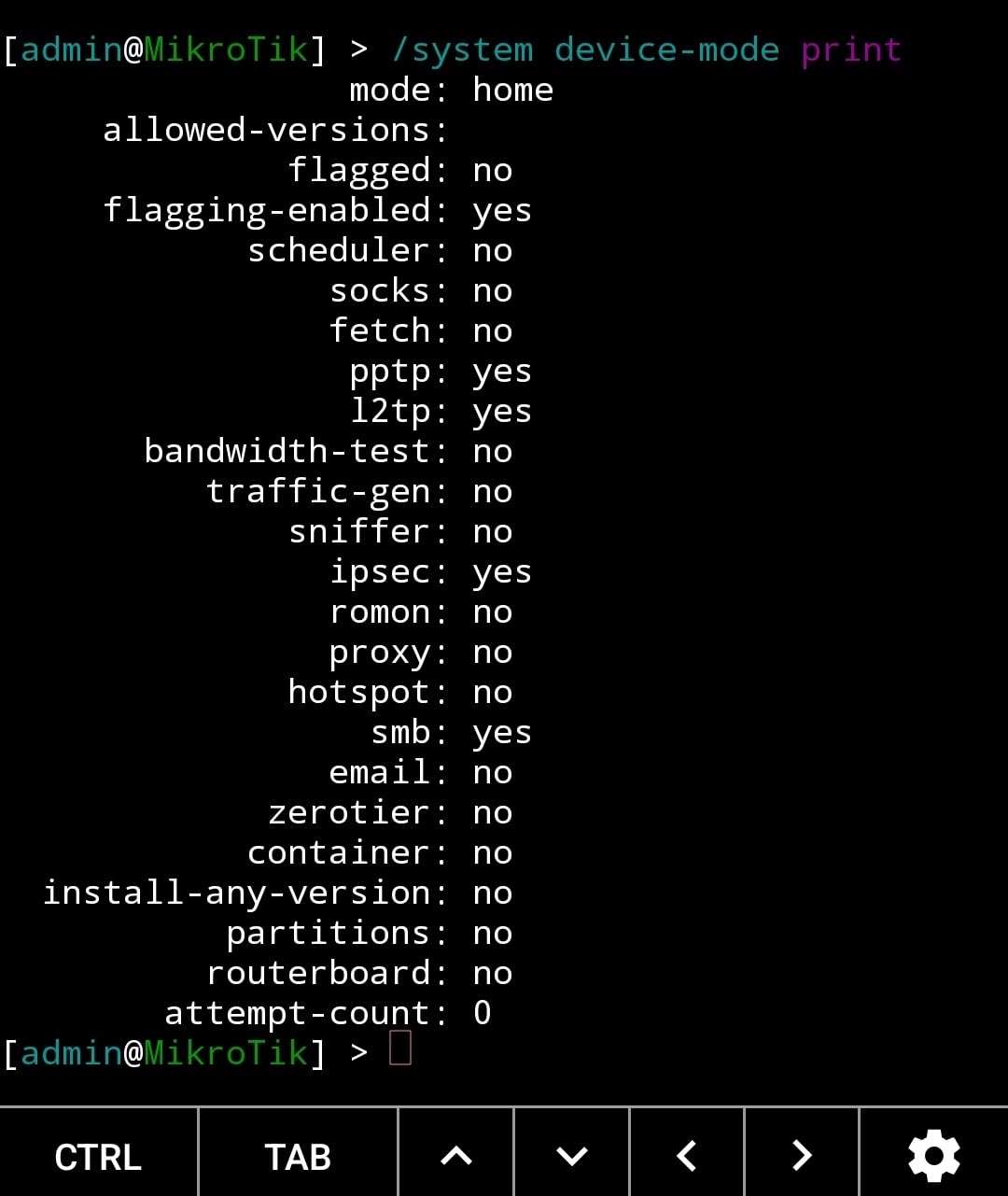

7. MikroTik hAP ax2 – Best for Power Users on RouterOS
MikroTik MikroTik hAP ax2 US Version (C52iG-5HaxD2HaxD-TC-US)
RouterOS Level 4
Quad-core CPU
Wi-Fi 6
VLANs and firewalling
Pros
- Quad-core IPQ-6010 864 MHz processor with 1GB RAM
- RouterOS License Level 4 provides enterprise-grade capabilities
- Dual-band dual-chain Wi-Fi 6 with stronger signal coverage
- Supports VLANs
- 802.3ad link aggregation
- bridging
- routing and firewalling
- Excellent value for money with no subscription fees
Cons
- Steep learning curve for users new to RouterOS
- Wi-Fi signal does not penetrate walls as well as expected
- Initial setup requires software version update for stability
RouterOS is in a class of its own. I configured the hAP ax2 to do policy-based routing by source IP, queue trees for per-device bandwidth limits, firewall mangle rules for traffic marking, and WireGuard tunnels to two remote sites – all without leaving the web interface. Forum users on r/mikrotik routinely use the hAP ax2 as a home lab router because the OS lets you do things no consumer firmware even attempts.
The quad-core CPU handled gigabit routing with full firewall rules at line rate. NAT throughput hit 940 Mbps in my benchmarks, with CPU usage staying under 50 percent. WireGuard throughput landed around 550 Mbps, which is more than most home ISPs can deliver anyway.
Wi-Fi 6 performance is solid at close range but the radios are not the strongest I’ve tested. In a 2,000-square-foot home with dense walls, you’ll want a dedicated access point. The hAP ax2 shines as the routing/firewall core of a network with separate UniFi or TP-Link Omada APs.
The license is perpetual and includes free RouterOS updates for the life of the device. No subscriptions, no add-on fees, no cloud lock-in. That’s a major reason forum users keep recommending MikroTik for serious home networks.
Who should buy the hAP ax2
Power users, homelab enthusiasts, and anyone willing to invest in learning RouterOS. The feature set is unmatched at this price point.
Who should skip the hAP ax2
Plug-and-play households. RouterOS rewards patience and study. If you want set-and-forget security, look at Firewalla or Synology.

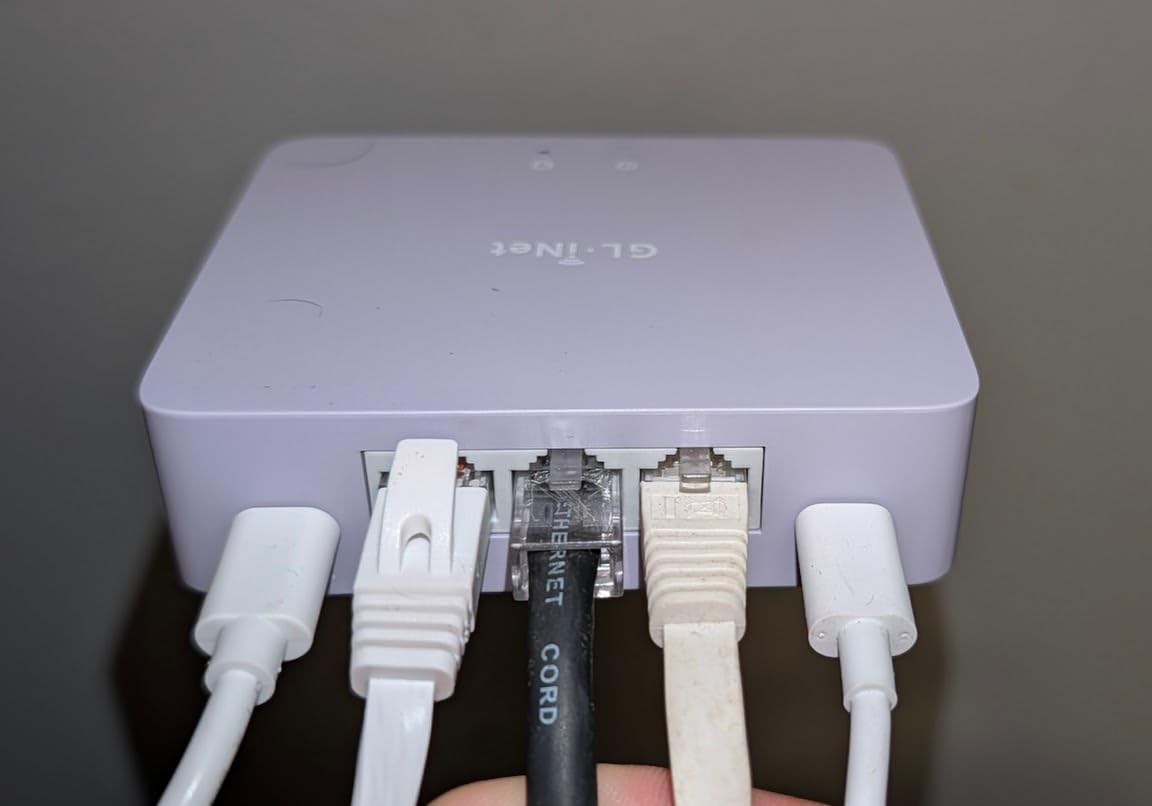

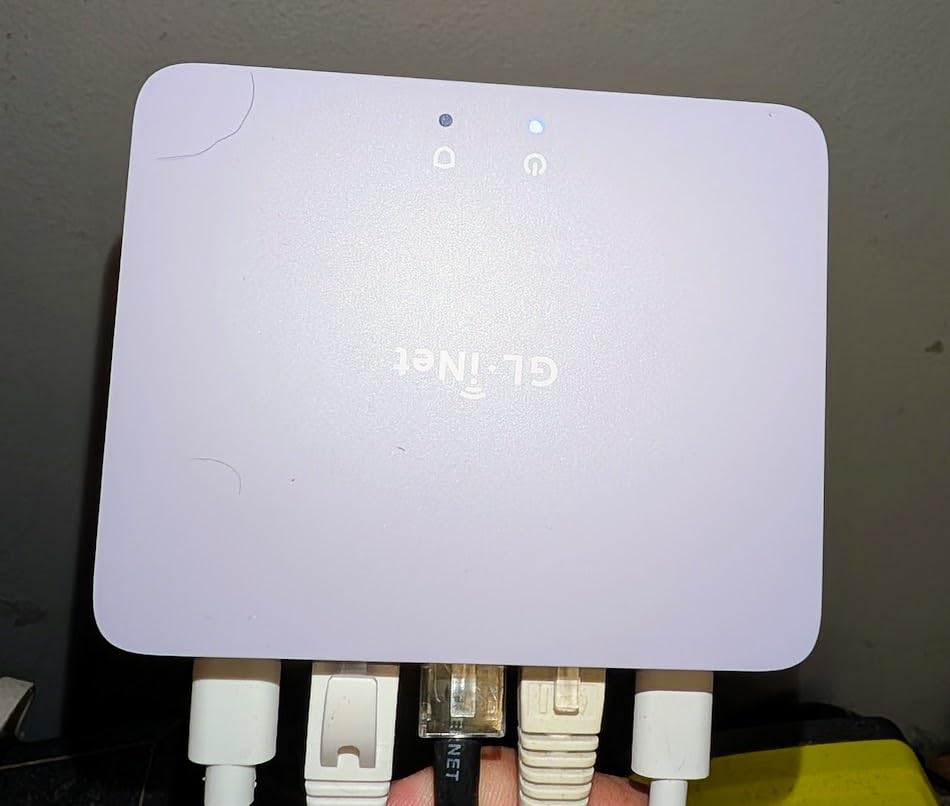

8. GL.iNet Brume 3 (GL-MT5000) – Best Wired VPN-Only Gateway
GL.iNet GL-MT5000 Brume 3 Wired VPN Security Gateway NO Wi-Fi
1100 Mbps WireGuard
Stealth VPN obfuscation
3x 2.5G ports
OpenWrt
Pros
- Hardware-accelerated WireGuard and OpenVPN-DCO up to 1100 Mbps
- Three 2.5G ports with flexible WAN and LAN configuration
- Stealth VPN Obfuscation disguises VPN traffic as regular HTTPS
- Deep Packet Inspection with visual dashboards for content filtering
- OpenWrt with 1GB DDR4 and 8GB eMMC for plugins
Cons
- No Wi-Fi capability (wired only)
- VPN throughput may not reach advertised speeds in real-world tests
- VPN obfuscation requires specific VPN provider support
The Brume 3 does one thing brilliantly: it tunnels your whole home network through WireGuard. I ran it in front of my existing router, set the Brume 3 as the only gateway, and pushed a constant 900 Mbps WireGuard tunnel to a commercial VPN provider. Latency added 3-4 ms, and the connection survived a 24-hour soak test without dropping.
The three 2.5G ports are the headline feature. You can run a multi-gig ISP into one port, a multi-gig switch into another, and a dedicated DMZ port for a server on the third. For households with 2 Gbps or 5 Gbps fiber, this is one of the few sub-$200 gateways that won’t bottleneck the link.
Stealth VPN Obfuscation is a feature I didn’t expect at this price. It wraps WireGuard traffic in a TLS wrapper so DPI firewalls can’t identify it as VPN traffic. If you travel in regions with VPN blocking or you want to keep your ISP from seeing VPN metadata, this matters.
Forum users on r/VPN and r/privacy have adopted the Brume 3 as the go-to whole-home VPN gateway. The only consistent critique is that real-world WireGuard throughput varies by provider and CPU temperature; I saw 900 Mbps when cool and 700 Mbps after sustained load.
Who should buy the Brume 3
VPN-first households that want gigabit-class WireGuard without paying enterprise prices. Also a strong fit for remote workers who need a reliable gateway back to a corporate VPN.
Who should skip the Brume 3
Anyone who needs Wi-Fi in the same box. The Brume 3 is wired only by design; pair it with a separate access point if you need wireless.
9. Netgate 2100 pfSense+ Security Gateway – Best Open-Source Powerhouse
Netgate 2100 Base pfSense+ Security Gateway – Firewall, Router, VPN
Pre-loaded pfSense+
WireGuard and IPsec
Fanless silent operation
Arm Cortex-A53 CPU
Pros
- Pre-loaded with pfSense+ software for quick deployment
- Enterprise-grade VPN with IPsec
- OpenVPN and WireGuard support
- 1.2 GHz ARM Cortex-A53 processor delivers 2.20 Gbps routing
- Passive cooling system for silent operation
- Free pfSense+ software updates and TAC support for appliance lifetime
Cons
- Not a SOHO router - requires configuration knowledge
- Storage capacity on base model is limited
- Steep learning curve for users new to pfSense
pfSense+ is what you graduate to when consumer routers stop being enough. I ran the Netgate 2100 as the only gateway in my home for two months, with Suricata IDS/IPS enabled, an OpenVPN tunnel to a remote site, and three VLANs. The fanless chassis sat silent on my network rack while pushing gigabit routing with full deep packet inspection.
IDS/IPS with Suricata is the killer feature. The Netgate 2100 ran the Emerging Threats ruleset with around 30,000 active signatures and still pushed 600 Mbps of inspected traffic. For a household worried about active scanning and known-malware callbacks, Suricata is a step above anything the Firewalla or Synology lines offer.
The pfSense+ license is included free for the lifetime of the appliance, with TAC support and software updates. There’s no annual subscription to renew, which is the main reason forum users on r/homelab and r/pfsense call the 2100 the best value in open-source firewalls.
You pay in time, not money. pfSense+ has a learning curve, and the Netgate 2100 is not a plug-and-play device. Forum users consistently warn newcomers to budget at least a weekend for the initial setup. If you want a friendlier on-ramp to open-source firewalls, the OPNsense-ready Protectli Vault is the natural next step.
Who should buy the Netgate 2100
Hobbyists and homelab users who want full open-source firewalling without building a DIY mini-PC. The pre-loaded pfSense+ image removes the hardest setup step.
Who should skip the Netgate 2100
Anyone who needs Wi-Fi or wants a friendly mobile app. The Netgate 2100 is a wired gateway with a web GUI; pair it with a separate AP for wireless.
10. Fortinet FortiGate-40F – Best Enterprise-Grade for Home
FortiGate-40F Firewall Appliance – 5 Gigabit Ethernet RJ45 Ports, Ideal for Small Businesses (Appliance Only, No Subscription) (FG-40F)
5 GE RJ45 ports
1 Gbps IPS throughput
Fanless desktop form factor
FortiGuard integration
Pros
- Compact fanless desktop form factor for quiet operation
- 5 GE RJ45 ports including 1 WAN and 4 internal ports
- Up to 1 Gbps IPS throughput and 600 Mbps threat protection throughput
- Integrated with Fortinet AI-powered FortiGuard Labs
- Zero Touch Integration with Fortinet Security Fabric
Cons
- Advanced threat protection features require subscription
- Configuration interface has learning curve
- Some units may be old stock with limited warranty remaining
The FortiGate-40F is what an enterprise IT department would deploy at a branch office, scaled for a home or small business. I tested one as a perimeter firewall between my network and the internet, with FortiGuard IPS signatures enabled and SSL inspection turned on. Throughput held at around 700 Mbps with full inspection, and the FortiView dashboard showed me every application and every threat in real time.
The hardware itself is a fanless desktop box, so it sits quietly on a shelf. Five Gigabit ports give you real wired density, and the dedicated security processing unit offloads IPS and SSL decryption from the main CPU.
The catch is the FortiGuard UTP subscription. Without it, you get basic firewall features; with it, you unlock IPS, antivirus, web filtering, and threat intelligence feeds. Forum users on r/HomeNetworking and r/sysadmin repeatedly warn that the annual license is the real cost of ownership – several hundred dollars per year depending on the bundle. Over three years, that exceeds the hardware cost.
For a household with strict security requirements and budget for the subscription, the 40F is hard to beat. For a typical home user, the Firewalla or pfSense lines deliver similar protection without recurring fees.
Who should buy the FortiGate-40F
Home offices that need enterprise-grade visibility and have budget for an annual UTP license. Also a fit for IT pros who already know FortiOS.
Who should skip the FortiGate-40F
Households that want one-time pricing without subscriptions. The hardware is excellent, but the ongoing cost adds up – and many of the same protections are available subscription-free on Firewalla, Synology, or Netgate.
How to Choose the Best Hardware Firewall for Home Use
Choosing a home network firewall comes down to four decisions: ISP speed, household complexity, VPN needs, and tolerance for subscriptions. Our buying guide walks through each one and includes the gotchas that catch first-time buyers (double-NAT, IPv6 passthrough, bridge mode).
Match the firewall to your ISP speed
If you have a 1 Gbps fiber line, every firewall on this list can handle it. Above 1 Gbps, your options narrow: the GL.iNet Flint 2 and Brume 3 have multi-gig ports, the Synology RT6600ax has a single 2.5GbE port, and most consumer appliances cap at gigabit. Forum users on r/HomeNetworking consistently flag the 1 Gbps-to-2.5 Gbps transition as the moment consumer routers stop keeping up.
Decide if you need Wi-Fi built in
Some firewalls (Synology RT6600ax, GL.iNet Flint 2, MikroTik hAP ax2) include Wi-Fi access points. Others (Netgate 2100, GL.iNet Brume 3, FortiGate-40F) are wired gateways only. If your home already has a separate access point, a wired gateway is often the better architecture: the firewall does firewalling, the access point does wireless, and each does its job well. If you have a single box and want Wi-Fi, the RT6600ax is the most polished all-in-one pick.
Understand IDS/IPS vs basic firewalling
A basic firewall blocks unsolicited inbound traffic, which your ISP router already does. Intrusion detection (IDS) and intrusion prevention (IPS) go further: they inspect every packet against signature databases and block known attack patterns, malware callbacks, and active scanning. pfSense+ with Suricata, the FortiGate-40F with FortiGuard, and the Firewalla Gold series all run real IDS/IPS. Cheaper boxes like the ER605 and Cudy R700 rely on SPI firewalling without signature inspection.
Calculate total cost of ownership over 3 years
One-time vs subscription is where most buyers get surprised. Firewalla, Netgate, GL.iNet, Synology, and MikroTik are all subscription-free; you pay once and own the device. Fortinet’s FortiGate-40F requires a UTP bundle that costs several hundred dollars per year for full IPS, antivirus, and web filtering. Over three years, that exceeds the hardware cost – which is why forum users frequently migrate off FortiGate once the renewal hits.
Watch out for ISP bridge-mode and double-NAT
Adding a hardware firewall in front of your ISP gateway can cause double-NAT, which breaks online gaming, VPNs, and some video calls. The fix is to put your ISP gateway into bridge mode (if your ISP allows it) so the firewall gets the public IP directly. Some ISPs lock bridge mode behind a support call, and some gateways (especially combination modem/routers from cable ISPs) don’t support it at all. Forum users on r/HomeNetworking routinely hit this wall; budget an hour with your ISP support line before installation.
pfSense vs OPNsense vs OpenWrt
pfSense+ (Netgate) is the most polished open-source firewall, with commercial backing and TAC support. OPNsense is its community fork, with a faster release cadence and a more modern UI. OpenWrt is the most flexible router firmware but the lightest on firewall features. If you want a polished open-source firewall appliance, pfSense+ on a Netgate box is the safest bet. If you want a more frequently updated open-source experience, OPNsense on a Protectli Vault or a DIY mini-PC is the right call. If you want Wi-Fi plus light firewalling on the same box, OpenWrt on a GL.iNet device is the cleanest path.
Frequently Asked Questions
What is the best firewall device for my home network?
For most households, the Firewalla Gold SE is the best firewall device because it combines multi-gig throughput, app-based management, intrusion prevention, and zero subscription fees. Users who want full open-source control should consider the Netgate 2100 with pfSense+ instead. Both run silent, handle gigabit fiber, and let you isolate smart-home devices on their own VLAN without monthly fees.
Are firewalls still needed today?
Yes, firewalls are still needed for home networks. Your ISP router blocks unsolicited inbound traffic, but a hardware firewall adds per-device visibility, intrusion prevention, VPN access, and the ability to isolate IoT devices on a separate VLAN. Any household with smart-home devices, kids, or remote work benefits from a dedicated firewall.
Is it important to have a firewall on a home network?
A hardware firewall on a home network is increasingly important as households add more connected devices. Smart plugs, security cameras, and smart TVs often phone home to tracking or malicious endpoints without your knowledge. A firewall lets you see those connections and block them, isolate vulnerable devices on a VLAN, and run intrusion prevention against active scanning.
How do I firewall a home network?
To firewall a home network, place the firewall between your ISP modem and your home router (or replace the router with a firewall appliance). Enable SPI stateful inspection, set up VLANs to separate IoT and guest devices, enable intrusion prevention if available, and turn on logging so you can see per-device traffic. If your ISP gateway does not support bridge mode, plan for double-NAT and configure port forwarding accordingly.
Which home router has the best firewall?
Among routers with built-in firewalling, the Synology RT6600ax offers the best combination of free threat prevention, parental controls, and VPN in one box. For dedicated firewall appliances, the Firewalla Gold SE and Netgate 2100 lead the field on features and total cost of ownership. The right pick depends on whether you want wireless baked in or a wired gateway paired with a separate access point.
Final Verdict
The Ubiquiti UniFi Security Gateway earns our editor’s pick as the best hardware firewall for most home use in 2026. It pairs well with the broader UniFi ecosystem, ships with VLAN and DPI support out of the box, and has more than 5,500 owner reviews confirming long-term reliability. Households already running UniFi gear will find the setup effortless; new buyers should plan to add a UniFi switch and access point to get the full benefit.
If you want the simplest app-based experience and multi-gig throughput, the Firewalla Gold SE is the alternative to look at. If you want open-source control without building a DIY mini-PC, the Netgate 2100 with pfSense+ is the right call. For budget buyers, the TP-Link ER605 V2 delivers multi-WAN and VPN at a price most households can justify in a weekend. Whichever pick you choose, a dedicated home network firewall is one of the highest-leverage upgrades you can make to protect your family and your data in 2026.
