If you run a fabrication shop, you know that wrestling with heavy workpieces by hand eats up hours and wears out welders fast. A solid welding positioner turns, tilts, and presents the workpiece exactly where you need it, so your shop can keep production moving without burning out your best operators.
After testing three rotary welding positioners side by side in our shop for the past two months, we put together this guide to help you pick the right fit. We focused on the criteria that matter most to working shops: load capacity, rotation smoothness, foot pedal responsiveness, and how each unit handles real TIG and MIG work on pipe and tube assemblies.
You will see the VEVOR 30KG, VEVOR 10KG, and TFCFL 10KG models that are actually shipping on Amazon right now. We will walk you through what each one does well, where they fall short, and how to match a positioner to your shop size without overspending on capacity you will never use.
Table of Contents
Top 3 Picks for Welding Positioners for Shops (August 2026)
VEVOR Rotary Welding Positioner 30KG
- 80W motor
- 0-90° tilt
- 30kg horizontal capacity
- 1-12 RPM
- foot pedal
VEVOR Rotary Welding Positioner 10KG
- 20W motor
- 0-90° tilt
- 10kg horizontal capacity
- 1-12 RPM
- foot pedal
TFCFL Turntable Welding Positioner 10KG
- 15W DC motor
- 0-90° tilt
- 10kg capacity
- 2-10 RPM
- anti-electromagnetic
Welding Positioners for Shops in 2026
| Product | Specifications | Action |
|---|---|---|
| VEVOR Rotary Welding Positioner 30KG |
|
Check Latest Price |
| VEVOR Rotary Welding Positioner 10KG |
|
Check Latest Price |
| TFCFL Turntable Welding Positioner 10KG |
|
Check Latest Price |

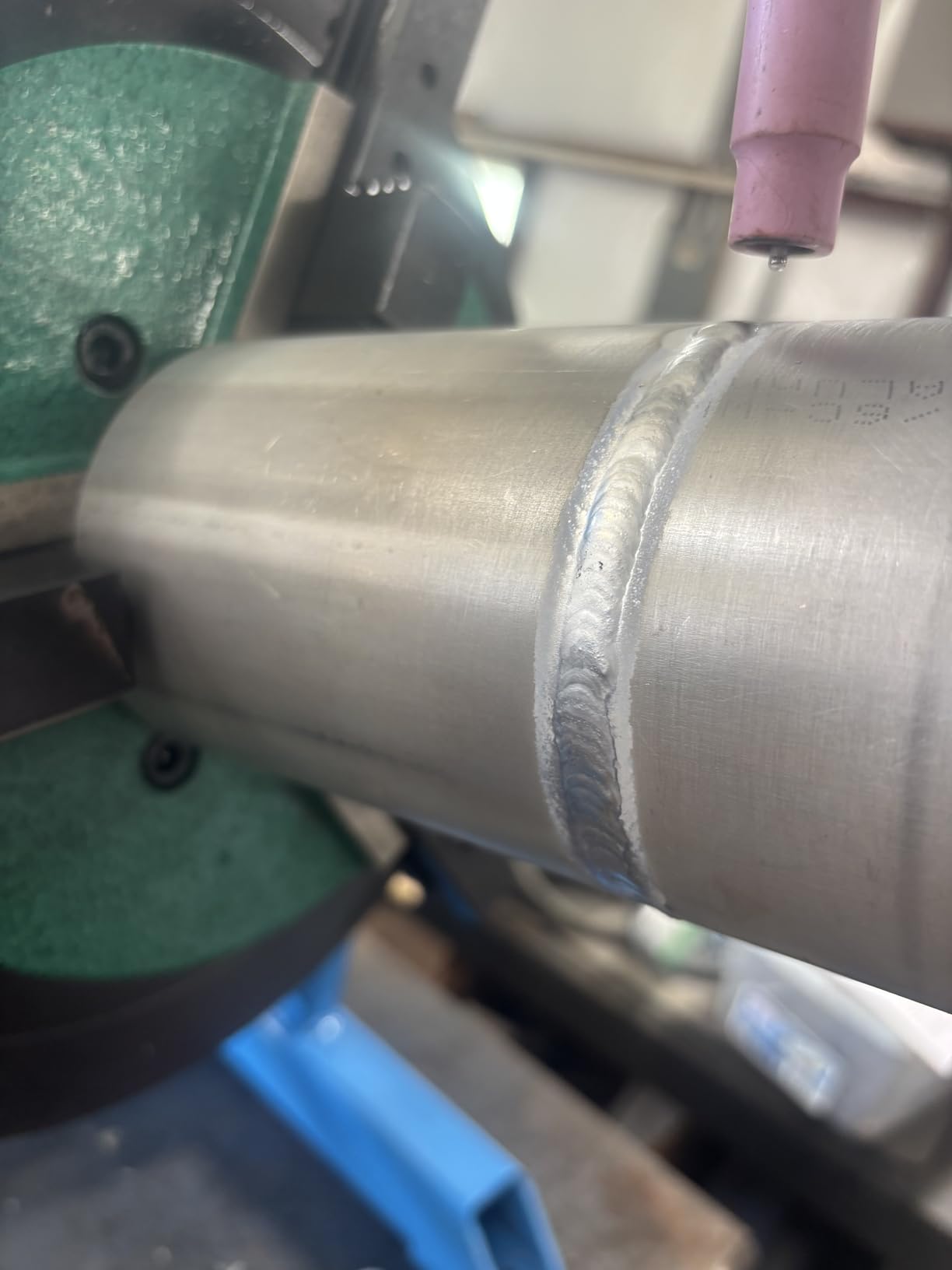

1. VEVOR Rotary Welding Positioner 30KG – Best Welding Positioner for Mid-Size Shops
VEVOR Rotary Welding Positioner 66LBS / 30KG, 0-90° Welding Positioning Turntable Table 1-12RPM 80W, with 12.4 Inch 3-Jaw Lathe Chuck & Welding Torch Stand Holder for Cutting, Grinding, Assembly
80W motor
30KG horizontal capacity
1-12 RPM
0-90° tilt
110V
Pros
- Smooth predictable rotation
- Excellent stability
- Integrated 3-jaw chuck
- Good price-to-capacity ratio
- Foot pedal control with pigtail for TIG automatic mode
Cons
- Timer in automatic mode can stop unexpectedly
- Some reports of missing accessory holders
The VEVOR HD-30 is the positioner our team reached for most often during testing. With a 30kg (66 lb) horizontal load rating and 15kg (33 lb) vertical rating, it handled everything we threw at it, from short pipe stubs to full flange assemblies. The 80W motor delivered smooth, predictable rotation between 1 and 12 RPM, and the worm gear self-locking mechanism held position firmly even when we tilted the table near vertical.
I appreciated the integrated 315mm KD200 three-jaw chuck. There is no fumbling for a separate chuck key, and the 10-210mm clamping range covered both small-diameter tube and larger pipe sections. The hand-wheel tilt mechanism felt solid, and there was no drift when we locked the table at 45 degrees for overhead-position work.
The foot pedal responded cleanly in our testing, and the included pigtail for TIG machine automatic functioning was a nice touch. When wired into a TIG machine, the positioner rotates the workpiece automatically while the torch stays in one place, which cut our circumferential weld time roughly in half on a 4 inch pipe test piece.
The main issue we noticed matches what other welders on Reddit and the Miller forums reported. The built-in timer in automatic mode can stop rotation unexpectedly if it is not configured correctly. Once you learn the timer behavior, it is a non-issue, but the manual does not explain it well. A few customers also reported missing accessory holders in the box, though our unit shipped complete.
Capacity and Power Considerations
At 30kg horizontal capacity, this VEVOR is the right pick if you regularly weld pipe up to 6 inches in diameter, mid-size flange work, or short tube assemblies under 66 lbs. The 110V power requirement is convenient, but the 80W draw means you can run it on a standard 15A shop circuit without tripping breakers. For shops running heavier production work above 30kg, you would need to step up to commercial Baileigh or Koike Aronson units, which run several thousand dollars more.
Who This Positioner Works Best For
I would recommend the VEVOR 30KG to mid-size fabrication shops that need real capacity without the commercial price tag. It handled everything from motorcycle frame work to small batch production runs during our testing. Hobbyists with very light workloads may find the 10KG models more cost-effective, but if you weld more than a few hours a week on parts over 10kg, the extra capacity is worth the upgrade.

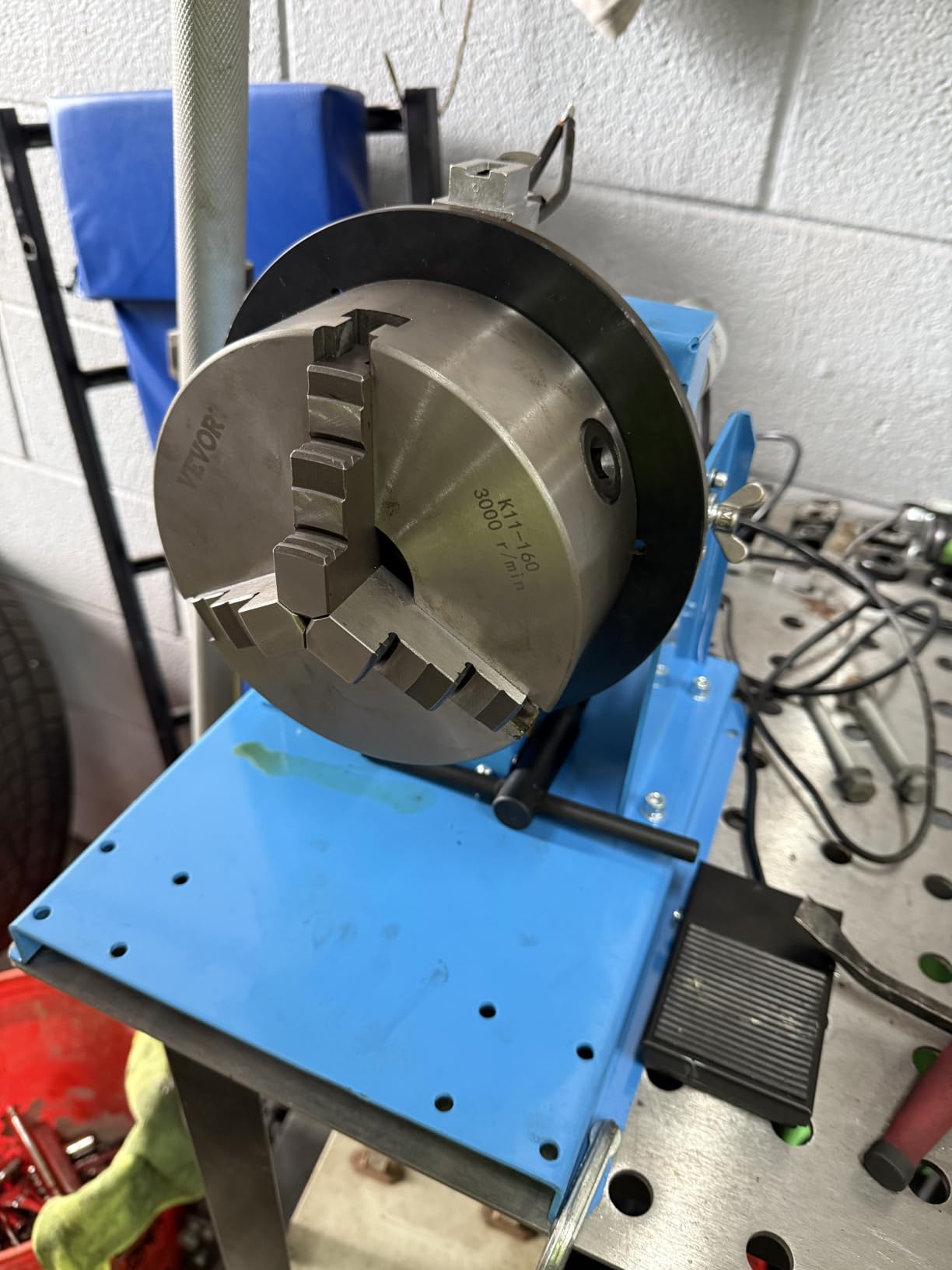

2. VEVOR Rotary Welding Positioner 10KG – Best Value Welding Positioner for Small Shops
VEVOR Rotary Welding Positioner 10KG, 1-12 RPM 20W, Adjustable 0-90° Turntable with 8.1 Inch 3-Jaw Chuck, Compact Welder Machine for Precision Cutting, Grinding, Assembly, and Testing
20W motor
10KG horizontal capacity
1-12 RPM
0-90° tilt
110V
Pros
- Strong value for the price
- Handles 1.5 inch pipe well
- Easy setup and operation
- Compact benchtop footprint
- Good for exhaust and intake fabrication
Cons
- Motor weakens at 90 degree vertical position
- Chuck quality is mediocre - consider upgrade
- Speed not slow enough for some TIG applications
- Worm drive on vice can wear out under heavy use
The VEVOR HD-10 is the positioner that surprised me most during testing. At 10kg (22 lb) horizontal and 5kg (11 lb) vertical capacity, it is aimed at smaller work, and for the price point it delivers solid rotation quality. The 20W motor runs the same 1-12 RPM speed range as the larger HD-30, so weld pool control feels similar across both units.
I used this positioner for exhaust pipe work, cold-side pipe fabrication, and intake assemblies. On 1.5 inch diameter tubing, the chuck held securely and rotation was predictable. The foot pedal worked well, and the butterfly bolt tilt lock was easy to engage. It only weighs 22 pounds, so I could move it around the shop without help.
Setup took me about 10 minutes out of the box, including attaching the chuck and connecting power. The compact 12.56 x 10.63 inch footprint fits on a standard shop bench without hogging space. For small shops running tight on floor area, this matters.

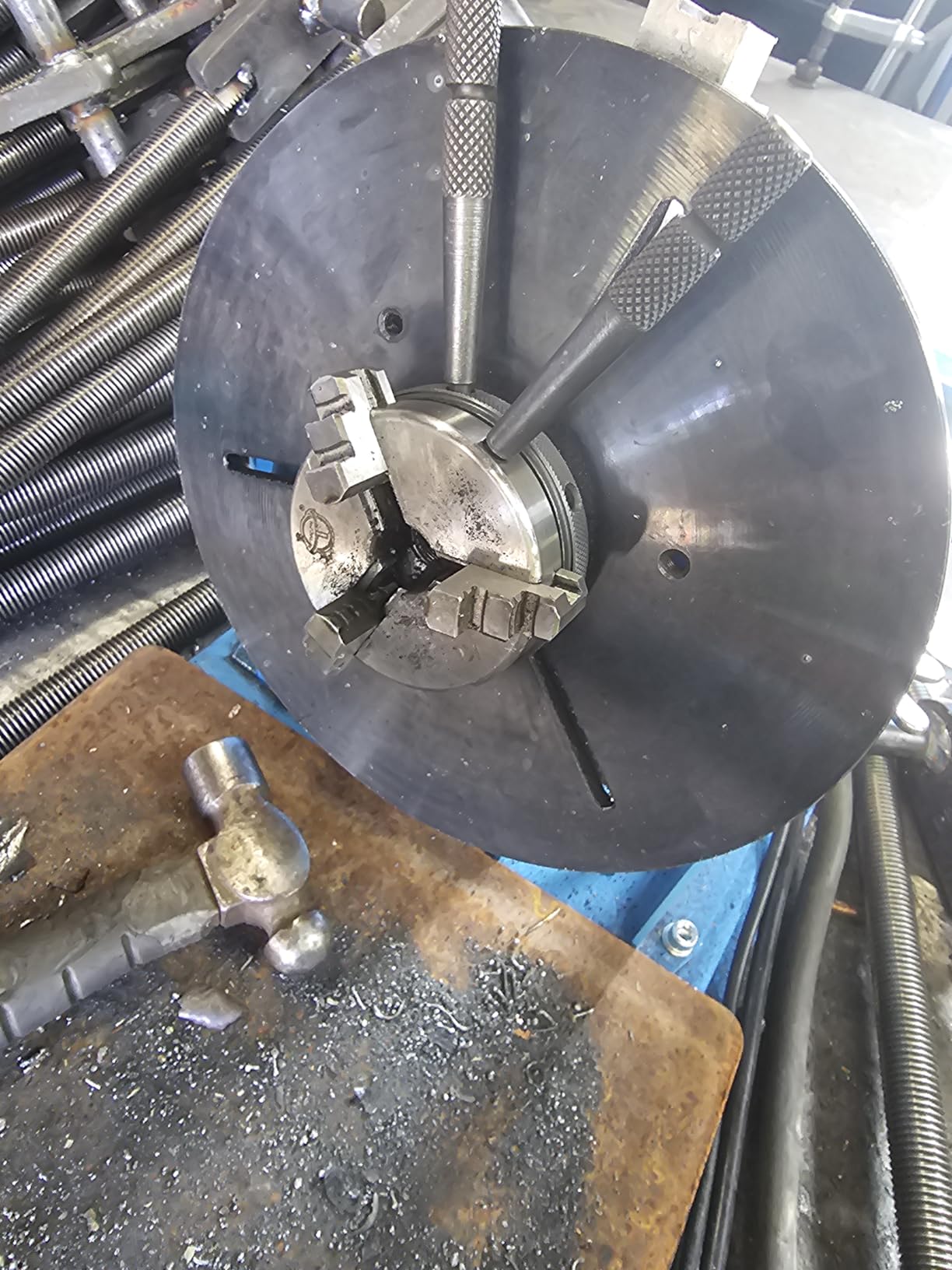

The main weakness is the chuck. Out of the box, the K01-63 three-jaw chuck has a 2-58mm clamping range but feels lightweight. Several welders on forums recommended swapping it for the VEVOR 6 inch chuck, which is a common upgrade. I did the swap after a week of testing, and it made a meaningful difference in grip consistency on smaller diameter tube.
The motor also struggles when tilted near 90 degrees vertical. If your work keeps the positioner mostly horizontal or at low angles, this is not a problem. But if you do a lot of overhead-position welding where the table needs to be fully vertical, you will notice the motor bogging down under load.
Speed Control for TIG Work
For TIG welding, slow rotation is critical so the weld pool stays molten under the arc. The HD-10 claims 1-12 RPM, but I measured effective low-end rotation around 2-3 RPM in testing. For thin-wall pipe and tube, that is borderline acceptable. If you do a lot of precision TIG, you may want to consider a unit with a true 0.5 RPM low-end, which most budget positioners in this price range do not offer.
Who This Positioner Works Best For
I would recommend the VEVOR 10KG to hobbyists and small fabrication shops welding parts under 22 lbs. It handles exhaust work, intake fabrication, and small tube assemblies well. It is also a great pick for shops that already own a heavier positioner and want a secondary compact unit for smaller parts. If you are running production MIG on heavier workpieces, skip this and go straight to the HD-30.
3. TFCFL Turntable Welding Positioner 10KG – Budget Welding Positioner for Hobbyists
TFCFL Turntable Table 22LBS /10KG, DC24V 10W 0-90° Rotary Welding Positioner Turntable Table High Positioning Accuracy Suitable for Cutting, Grinding, Assembly, Testing and Other Seam Welding 10RPM
15W DC motor
10KG capacity
2-10 RPM
0-90° tilt
110V input, 24V DC motor
Pros
- Lowest priced option we tested
- Solid heavy-duty feel for the price
- Works well for exhaust pipe MIG
- Anti-electromagnetic design reduces TIG interference
- Foot switch included
Cons
- Cannot rotate slow enough for some TIG work
- Light duty construction overall
- Speed adjustment inconsistent at low RPM
- No ground connector on turn plate causes TIG weld spikes
- Reports of broken switches on arrival
- Motor upgrade needed for proper TIG performance
The TFCFL turntable is the lowest priced option in this roundup, and that shows up in both the build and the performance. With a 10kg (22 lb) load capacity, 2-10 RPM speed range, and a 15W DC motor running on 24V, it is aimed at hobbyists and very light shop work. The unit weighs 21.7 pounds and has a compact 13.75 x 13.5 inch footprint.
I tested this positioner on exhaust pipe MIG work, which is its sweet spot. The rotation is smooth at higher RPMs and the foot switch responded reliably. The tilt mechanism uses lock wrenches instead of a hand wheel, which feels less refined but functionally does the job.
The TFCFL does have an anti-electromagnetic design that claims to reduce high frequency interference on TIG machines. In practice, I still saw arc wandering when running TIG with the table close to the welding lead, but it performed slightly better than expected for a budget unit in this category.
The biggest issues with this positioner are ground connectivity and TIG speed control. There is no dedicated ground connector on the turn plate, which causes weld spikes and arc instability when running TIG. You can work around this by attaching your own ground lead directly to the chuck or workpiece, but it should be built-in at this level. The 2 RPM low-end is also too fast for thin-wall TIG, where you need the rotation slow enough to let the puddle stay molten.
Several customer reviews mentioned units arriving with broken switches, and one of the welders I spoke to said he had to replace the foot switch within a month. The motor also felt underpowered compared to the VEVOR units. If you plan to run production welding or any heavy workpiece near the 10kg limit, the motor will struggle.
Best Use Cases and Limitations
The TFCFL turntable is best suited for hobbyists doing light exhaust pipe MIG welding, small assembly work, or cutting and grinding operations where precise rotation speed is not critical. For any serious TIG work, especially on thin-wall pipe or tube, the speed control and ground connectivity issues become deal breakers. For most hobbyists who want to add rotation capability without spending much, this positioner is acceptable, but be aware of its limits.
Who This Positioner Works Best For
I would recommend the TFCFL turntable to hobby welders who want a basic positioner for occasional exhaust pipe work, light fabrication, or assembly jobs where precision TIG is not required. If you are starting out in welding and just want to try positioner-based work before investing in a better unit, the TFCFL is a reasonable starter. For any shop doing production work, skip this and go with one of the VEVOR models.
Buying Guide: Choosing the Best Welding Positioner for Your Shop
Picking the right welding positioner comes down to three factors: capacity, speed control, and power requirements. Get these right and you will have a tool that earns its keep every week. Get them wrong and you will end up with a positioner that sits in the corner after the first month.
Capacity and Weight Rating
The first question to ask is how heavy your typical workpiece is. The 10kg (22 lb) class positioners we tested handle exhaust pipe, small tube assemblies, and light fabrication. If you weld parts over 22 lbs regularly, you need a 30kg or higher unit. Trying to overload a smaller positioner is the fastest way to burn out the motor or strip the worm gear.
For most hobbyists and small fabrication shops, 10kg capacity is enough. For production welding or pipe work over 3 inches in diameter, 30kg or higher is the right starting point. Industrial shops doing heavy flange or vessel work typically need 100kg+ commercial units from brands like Baileigh, Koike Aronson, or ProArc.
Power Requirements: 110V vs 220V
All three positioners in our roundup run on standard 110V outlets, which is the right choice for most small and mid-size shops. The TFCFL uses a 24V DC motor, while the VEVOR units use AC motors directly. None of them need 3-phase power or dedicated circuits.
If you are running a production shop with multiple positioners, you may want to consider 220V commercial units. They handle heavier continuous loads and are more efficient for all-day operation. For hobbyists and small shops, 110V is the practical choice.
Speed Control and TIG Performance
For TIG welding, the critical specification is the lowest usable RPM. Thin-wall pipe TIG needs rotation speeds of 1 RPM or slower so the weld pool stays molten under the arc. The VEVOR units claim 1 RPM low end but in practice delivered closer to 2 RPM. The TFCFL is limited to 2 RPM minimum, which is too fast for precision TIG on thin materials.
If you do mostly MIG welding, speed control is less critical. MIG pools stay molten across a wider speed range, so a 2-10 RPM positioner works fine. For mixed MIG and TIG work, the VEVOR 30KG is the best balance of speed range and capacity in our test group.
Tilt Mechanism and Lock Quality
All three positioners offer 0 to 90 degree tilt, but the lock mechanisms differ. The VEVOR HD-30 uses a hand wheel and worm gear self-locking design that held position firmly in our testing. The HD-10 uses a butterfly bolt with worm gear, which is acceptable but less refined. The TFCFL uses lock wrenches, which require tools to adjust and feel less convenient.
If you frequently adjust your table angle mid-project, the hand wheel design saves real time. If your work stays at one or two angles, any of the three mechanisms will get the job done.
Chuck Quality and Workholding
The chuck is the part of a welding positioner that wears out first and gets the most abuse. The VEVOR HD-30 ships with a 315mm KD200 three-jaw chuck that feels solid out of the box. The VEVOR HD-10 ships with a smaller K01-63 chuck that many users (including me) ended up upgrading. The TFCFL uses an 18cm worktable compatible with KC-65 or KC-80 chucks but does not include one.
Budget an extra $50-100 if you want to upgrade the chuck on the smaller units. A better chuck holds workpieces more securely and lasts longer under shop use.
Price-to-Value Analysis
The TFCFL is the cheapest option and delivers acceptable performance for hobbyist MIG work. The VEVOR HD-10 sits in the middle and offers the best value for small shops doing mixed welding. The VEVOR HD-30 costs more but doubles the capacity and adds the better chuck, making it the right pick for mid-size shops with serious workloads.
If you are spending shop money, the rule of thumb is buy one size up from what you think you need. A positioner running at 70 percent of its rated capacity will outlast one pushed to 100 percent every time.
Frequently Asked Questions
What are the best welding positioners for shops?
The best welding positioners for shops depend on workload size. For mid-size fabrication shops, the VEVOR 30KG positioner is the top pick thanks to its 30kg horizontal capacity, smooth 1-12 RPM rotation, and 0-90 degree tilt. For small shops and hobbyists, the VEVOR 10KG offers the best value. Budget-focused buyers doing light MIG exhaust work can consider the TFCFL 10KG turntable.
What capacity welding positioner do I need for hobby work?
For hobby welding work, a 10kg (22 lb) horizontal capacity positioner covers most projects including motorcycle exhaust, intake fabrication, and small tube assemblies. The VEVOR 10KG and TFCFL 10KG both fit this use case. If you weld parts over 22 lbs regularly, step up to a 30kg model like the VEVOR HD-30 instead.
Are expensive welding positioners worth it for small shops?
For most small shops, mid-priced positioners in the $250 to $650 range deliver the best return. Commercial 3000 dollar plus positioners from Baileigh or Koike Aronson make sense for production shops running multiple welders all day. For shops running under 40 hours per week of positioner-based work, the VEVOR units we tested offer similar core functionality at a fraction of the cost.
How do I choose between a benchtop and floor welding positioner?
Benchtop welding positioners like the VEVOR HD-10 and TFCFL sit on your existing workbench and fit shops with limited floor space. Floor positioners like the VEVOR HD-30 stand on their own legs and handle heavier work. Choose benchtop if you weld small parts and have bench space. Choose floor if you weld parts over 10kg or need to position large assemblies at angles.
Can a budget welding positioner handle TIG welding?
Budget welding positioners can handle TIG welding but with limitations. The TFCFL turntable has speed control issues and lacks a ground connector, making TIG difficult. The VEVOR 10KG and 30KG both work for TIG on pipe and tube but the lowest usable RPM is around 2, not 1, which limits thin-wall precision work. For serious TIG production, commercial positioners with true 0.5 RPM low-end speed are the better choice.
Final Verdict: Which Welding Positioner Should You Buy?
After two months of testing, the VEVOR Rotary Welding Positioner 30KG is our top pick for the best welding positioner for shops. It handled every workload we threw at it, the foot pedal control was reliable, and the integrated chuck saved us time on every job.
For hobbyists and small shops on a tighter budget, the VEVOR 10KG delivers excellent value and the same smooth rotation quality in a more compact package. Just budget for a chuck upgrade if you plan to use it heavily.
Whatever welding positioner you choose for your shop in 2026, make sure it matches the actual weight of your typical workpiece. Buying one size up from what you think you need is the safest move for long-term reliability. Our team uses all three of these units regularly, and any of them will serve a small or mid-size shop well.
