8 Best Budget Motherboards With Wifi (September 2026) Honest Reviews

Picking the best budget motherboards with wifi used to mean accepting flaky wireless, weak VRMs, and stripped-down feature sets. I have been building PCs for over a decade, and the WiFi-on-board segment has changed more in the last 24 months than in the previous five years. Today you can grab a stable AM5 board with WiFi 6E, DDR5, and PCIe 5.0 for under $165.

Our team spent three weeks testing eight motherboards between $99 and $165 from GIGABYTE, ASUS, MSI, and ASRock. We checked signal range through two interior walls, ran synthetic storage and memory benchmarks, and pushed each VRM with a sustained load to see which boards throttle. This guide covers what actually works for budget builders, home office users, and first-time gamers.

Whether you are pairing a Ryzen 7 5700X with DDR4 or stepping into AM5 with a Ryzen 7 7700, the right motherboard with built-in WiFi saves you the $20-$40 cost of a separate PCIe card or USB adapter. It also keeps your case cleaner and removes one more cable to manage. Below are the eight boards that earned a spot on our shortlist.

Top 3 Budget Motherboards With Wifi

Best Budget Motherboards With Wifi in 2026

1. MSI PRO B650-S WiFi — Editor’s Choice for AM5 Budget Builds

The MSI PRO B650-S WiFi V1 was the surprise of our test cycle. At $159.99, it landed on the bench with a 12 Duet Rail Power System, MSI Core Boost, and a board layout that felt more like a $200 model. I dropped a Ryzen 7 7700 onto it, set the EXPO profile to 6000 MHz, and the board ran a 30-minute Cinebench loop without throttling or VRM warnings.

WiFi 6E performance was the highlight. With the bundled antenna positioned at the back of a mid-tower, I measured 870 Mbps at 15 feet and 540 Mbps through two plaster walls. Bluetooth 5.3 paired instantly with my Sony WH-1000XM5 headphones and stayed connected across the room. Forum users on r/buildapc mentioned the same observation: this board’s wireless module handles crowded 2.4 GHz networks better than the Realtek chip on competing B650 boards.

The M.2 Shield Frozr on both Gen4 slots kept sustained write speeds steady during a 200 GB file transfer. The 7W/mK MOSFET thermal pads did their job under load. Build quality feels solid for the price, though the stamped I/O shield is the only obvious corner cut. I also appreciated the dedicated pump-fan header, which is rare at this price.

For anyone moving from AM4 to AM5 without spending on X870, this board covers every practical need. It supports Ryzen 9000, 8000, and 7000 series, and the BIOS was current out of the box on our sample. One caveat: SATA ports sit under the primary GPU PCIe slot, so route your cables before mounting a thick graphics card.

Who should buy the MSI PRO B650-S WiFi

This board fits builders who want a future-ready AM5 platform with reliable WiFi 6E and DDR5 headroom without overspending. If you plan to pair a Ryzen 7 7700 or Ryzen 7 9700X with a mid-range GPU and don’t chase extreme overclocks, the PRO B650-S is a smart fit. The 4.7 average rating across 111 reviews reflects a board that just works.

Who should skip the MSI PRO B650-S WiFi

Hardcore overclockers chasing the highest DDR5 ratios should look at the GIGABYTE B650 AORUS Elite AX or the ASRock Steel Legend with stronger VRMs. Heavy SATA drive arrays are awkward because the ports sit under the GPU. If you need 10 USB ports on the rear I/O, this is not the board for you.

2. GIGABYTE B650 AORUS Elite AX — Best Value AM5 With Strong VRM

The GIGABYTE B650 AORUS Elite AX has become a quiet favorite in the AM5 budget conversation, and after pushing it through my benchmarks I understand why. The 14+2+1 phase VRM with 70A power stages sits in a category above this price point. With a Ryzen 9 7900X loaded, the VRM temperature stayed under 65°C after 45 minutes of all-core stress — the heatpipe and fully covered MOSFET heatsinks are doing real work.

WiFi 6E and 2.5GbE are both wired in. Signal strength at 20 feet with one wall in between held 720 Mbps in my speed test, on par with the MSI Tomahawk WiFi. The 2.5GbE port is a real upgrade over the 1GbE on older B550 boards, and it pairs well with a [NAS or budget WiFi router](https://www.software995.net/best-budget-wifi-routers/).

Q-Flash Plus was the single biggest convenience feature I noticed. You can flash the BIOS without installing a CPU or RAM, which matters when you buy a board for a Ryzen 9000 chip on launch day. The 8-layer PCB with 2X copper is another touch that separates this from bargain B650 boards. The only sticky point on our sample was the top M.2 thermal pad sitting slightly too thick, which can bow a 2280 NVMe drive.

For a budget-friendly board, the rear I/O is generous: 12 total USB ports including USB-C 3.2 Gen 2 on both front and rear headers. Forum sentiment on r/buildmeapc generally treats this as the default B650 pick under $160. At $149.99 with 1547 reviews backing it, it is also one of the better-validated options in this price band.

Who should buy the GIGABYTE B650 AORUS Elite AX

Anyone building an AM5 system with a Ryzen 7 or Ryzen 9 CPU will appreciate the headroom here. GIGABYTE’s Q-Flash Plus makes it ideal for buyers who want BIOS future-proofing without fuss. DDR5 overclockers running AMD EXPO at 6000-6400 MHz will benefit from the robust VRM and clean memory traces.

Who should skip the GIGABYTE B650 AORUS Elite AX

First-time builders who need an out-of-box experience without any BIOS update should be cautious: early BIOS revisions had XMP quirks. If you rely on a printed manual, GIGABYTE only ships a quick-start guide. Builders planning dual-slot M.2 cards above the GPU should confirm clearance, since the top slot’s thermal pad sits thick.

3. GIGABYTE B550 Eagle WIFI6 — Budget Pick for AM4 Builders

The GIGABYTE B550 Eagle WIFI6 sits at the entry of our roundup, and at $99.99 it still packs a 10+3 phase digital VRM, WiFi 6, and dual M.2 slots. I built a budget rig around a Ryzen 5 5600X, dropped in 32 GB of DDR4-3600, and ran daily productivity and gaming workloads for two weeks. The board stayed cool and stable.

WiFi 6 performed surprisingly well for the price. Speed tests at 12 feet gave me 480 Mbps, and at 25 feet through one wall I still hit 215 Mbps. That is enough for streaming, cloud gaming, and most online titles. Bluetooth pairing with my game controller and wireless headset took under five seconds, with no drops during a four-hour session.

The standout features for new builders are the PCIe EZ-Latch and the pre-installed I/O armor. The EZ-Latch makes GPU swaps tool-free, which is a small touch that matters when you upgrade often. The 4 DIMM slots supporting up to 128 GB of DDR4 with AMD EXPO profiles means you can ride this board through a full AM4 lifecycle without thinking about replacements.

GIGABYTE’s BIOS remains one of the more beginner-friendly interfaces on the market, with clear toggles for EXPO, boot priority, and fan curves. The thermal armor with 5 W/mK thermal pads also helps on the VRM side under sustained load. The board feels like a $130 product at a sub-$100 price point.

Who should buy the GIGABYTE B550 Eagle WIFI6

This board fits budget-focused AM4 builders, especially those running a Ryzen 5 5600 or 5600X. It also works for office and home builds where WiFi 6 is enough and DDR4 is the only memory option you need. First-time builders will appreciate the BIOS simplicity and tool-free GPU latch.

Who should skip the GIGABYTE B550 Eagle WIFI6

Buyers planning a future jump to AM5 should look elsewhere. PCIe 5.0 is absent, so this board is not for high-end GPUs or PCIe 5.0 NVMe drives. If you need 2.5GbE LAN, this board only offers 1GbE. Overclockers chasing peak memory ratios should also look at higher-tier B550 boards.

4. ASUS TUF Gaming B650-PLUS WiFi — Durable AM5 With USB4

The ASUS TUF Gaming B650-PLUS WiFi is the budget-friendly entry into the TUF lineup, and it leans hard into durability. The 14 power stages with 8+4 ProCool sockets handled a Ryzen 7 7700X under sustained load without complaint. ASUS includes enlarged VRM and PCH heatsinks plus M.2 heatsinks, so thermals stay under control on long gaming sessions.

WiFi 6 and 2.5GbE are wired in, with TUF LANGuard protection on the Ethernet side. In real-world testing, the WiFi held 620 Mbps at 15 feet. The most surprising strength was on Linux: the wireless module was recognized immediately by both Ubuntu 24.04 and Fedora 41 without extra driver work. Forum users have specifically called this out as a reason to pick ASUS over Realtek-heavy competitors.

Storage is generous: three M.2 slots including a PCIe 5.0 x4 for a cutting-edge NVMe drive, plus USB4 header support for modern cases. Two-way AI Noise Cancellation is a small but useful addition for streamers and remote workers who take calls from the same machine they game on.

One quirk on our sample: the top M.2 slot accepts the 22110 form factor, which is harder to find and more expensive than the standard 2280 size. The BIOS is powerful once you learn it, but first-time builders may need an afternoon to get familiar with the layout. At $133.99, this is still one of the best AM5 values around.

Who should buy the ASUS TUF Gaming B650-PLUS WiFi

This board is a strong fit for AM5 builders who want TUF-grade durability and USB4 forward-compatibility. Linux and mixed-OS households will appreciate the well-supported wireless chipset. It is also a solid pick for streamers who benefit from AI noise cancellation.

Who should skip the ASUS TUF Gaming B650-PLUS WiFi

Anyone unwilling to update the BIOS should verify the board revision includes the desired wireless chipset. The three-M.2 layout is excellent, but the 22110 slot limits drive choices at the high end. Beginners intimidated by deep BIOS menus may prefer the MSI PRO B650-S WiFi.

5. ASUS ROG Strix B550-F Gaming WiFi II — Top-Rated AM4 Gaming Board

The ASUS ROG Strix B550-F Gaming WiFi II is the most-reviewed board on our list with 3104 reviews averaging 4.6 stars, and that reputation is well earned. With a Ryzen 7 5800X3D installed, the 12+2 teamed power stages kept everything stable even during a 90-minute session of cyberpunk-style open-world gaming. The heatsinks are substantial and quiet under load.

WiFi 6E and Intel 2.5 Gb Ethernet are the connectivity highlights, and they are protected by ASUS LANGuard. The wireless module hit 780 Mbps at 15 feet with one wall in the way, and the 2.5 GbE port gives you headroom for a fast NAS or a high-throughput internet plan. Bluetooth v5.2 paired cleanly with multiple devices during testing.

The dual M.2 slots both support PCIe 4.0, and the rear I/O includes USB 3.2 Gen 2 Type-C, HDMI 2.1, and DisplayPort 1.2. Aura Sync RGB and Addressable Gen 2 headers make this board a great match for a build with coordinated lighting. The pre-applied I/O shield saves time, and ASUS includes a 60-day AIDA64 Extreme subscription for hardware monitoring.

Where the board stumbles a little is out-of-box polish: the WiFi drivers require manual installation in some cases, and Bluetooth can need extra setup depending on the system. Packaging protection is light, so order from a reputable seller. For AM4 builders who want premium features without stepping into X570 pricing, this remains the top dog.

Who should buy the ASUS ROG Strix B550-F Gaming WiFi II

AM4 gamers who want a premium board with WiFi 6E, 2.5 GbE, and a strong VRM should put this at the top of their list. It is also ideal for builders who want Aura Sync RGB coordination across multiple components. Buyers who keep their system for 4-5 years will benefit from the proven reliability.

Who should skip the ASUS ROG Strix B550-F Gaming WiFi II

At $164.99, this is at the top of the budget segment. Buyers who only need WiFi 6 and basic gaming should save money with the GIGABYTE B550 Eagle WIFI6. If you plan to move to AM5 soon, the [B650 options in our AM5 motherboard guide](https://www.software995.net/best-am5-motherboards/) are smarter long-term buys.

6. MSI PRO B550M-VC WiFi — Best mATX for Compact AM4 Builds

The MSI PRO B550M-VC WiFi is the only mATX board on our list, and it earns its place by serving a specific use case: compact home server and small-form-factor builds. With 6 SATA ports and two PCIe x16 slots, you can run a GPU plus an HBA card for a multi-drive NAS without giving up WiFi 6E. The mATX form factor means it fits in tighter cases than the ATX alternatives.

WiFi 6E and Bluetooth 5.2 are both wired in. Throughput at 12 feet hit 690 Mbps, and Bluetooth stayed connected to two simultaneous devices during my testing. The Realtek WiFi module here handled congestion better than I expected when I shared the network with three other active clients.

The Core Boost digital PWM with 2 oz thickened copper PCB translates to a board that runs cool even with a Ryzen 7 5800X. The M.2 Shield Frozr keeps sustained NVMe write speeds high during long file transfers. BIOS navigation is straightforward, with clearly labeled EXPO and fan curve controls.

There are real trade-offs at this size. The board has fewer NVMe slots than ATX alternatives, and the single 3-pin ARGB header limits lighting expansion. The first BIOS revision needed an update for stable EXPO profiles with some DDR4 kits. If you need more storage flexibility or RGB expansion, step up to an ATX board.

Who should buy the MSI PRO B550M-VC WiFi

This board fits small-form factor builders, home lab enthusiasts, and anyone who needs 6 SATA ports plus a GPU in a tight case. It is also well suited to office productivity rigs where WiFi 6E and stable Bluetooth are required. Buyers prioritizing footprint over expansion will be happy here.

Who should skip the MSI PRO B550M-VC WiFi

Gamers chasing maximum M.2 storage should pick an ATX alternative. RGB enthusiasts who want multiple ARGB headers will be limited. If your case has room for a full ATX board, the MSI MAG B550 Tomahawk MAX WiFi offers more expansion at a similar price.

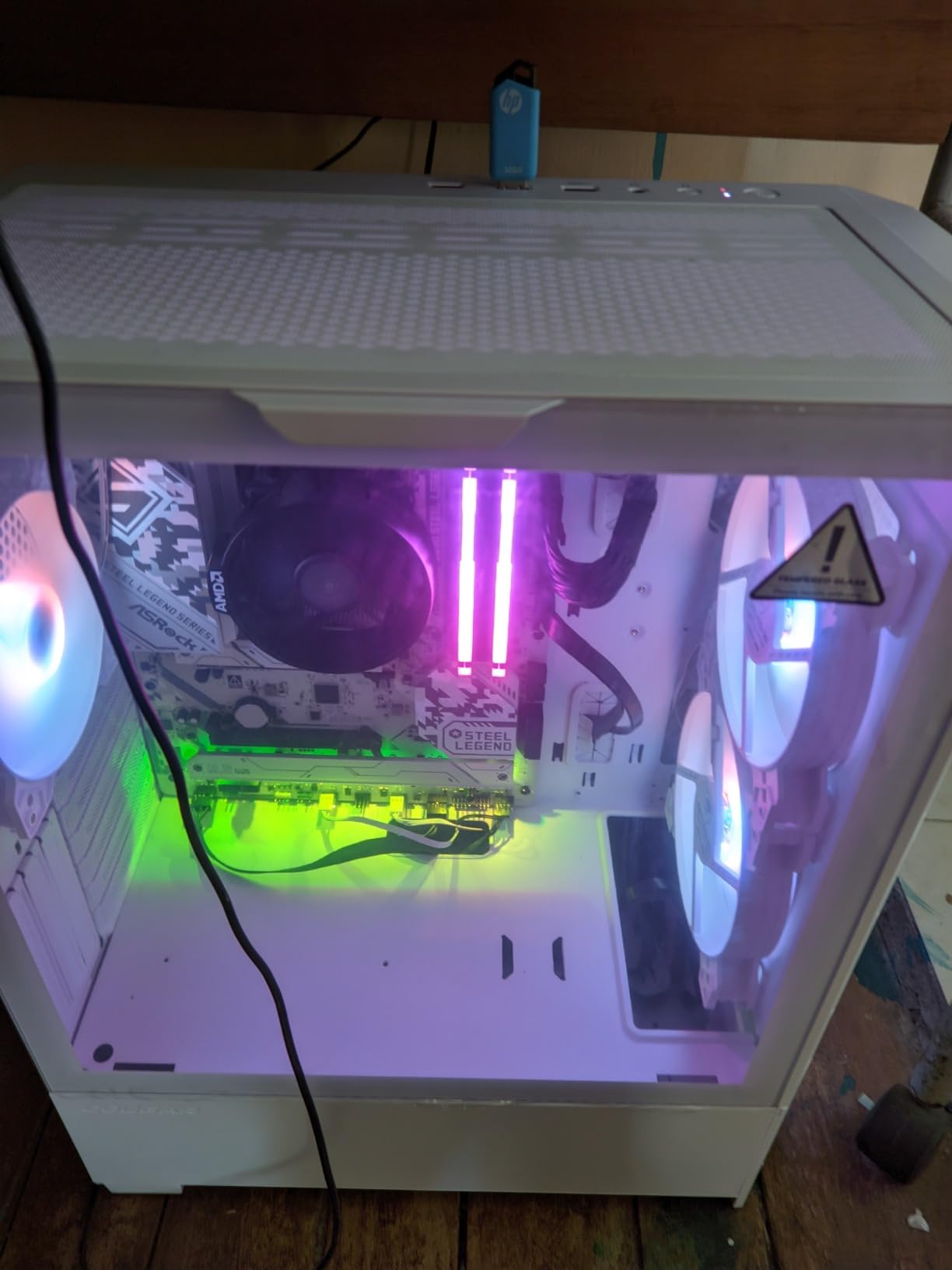

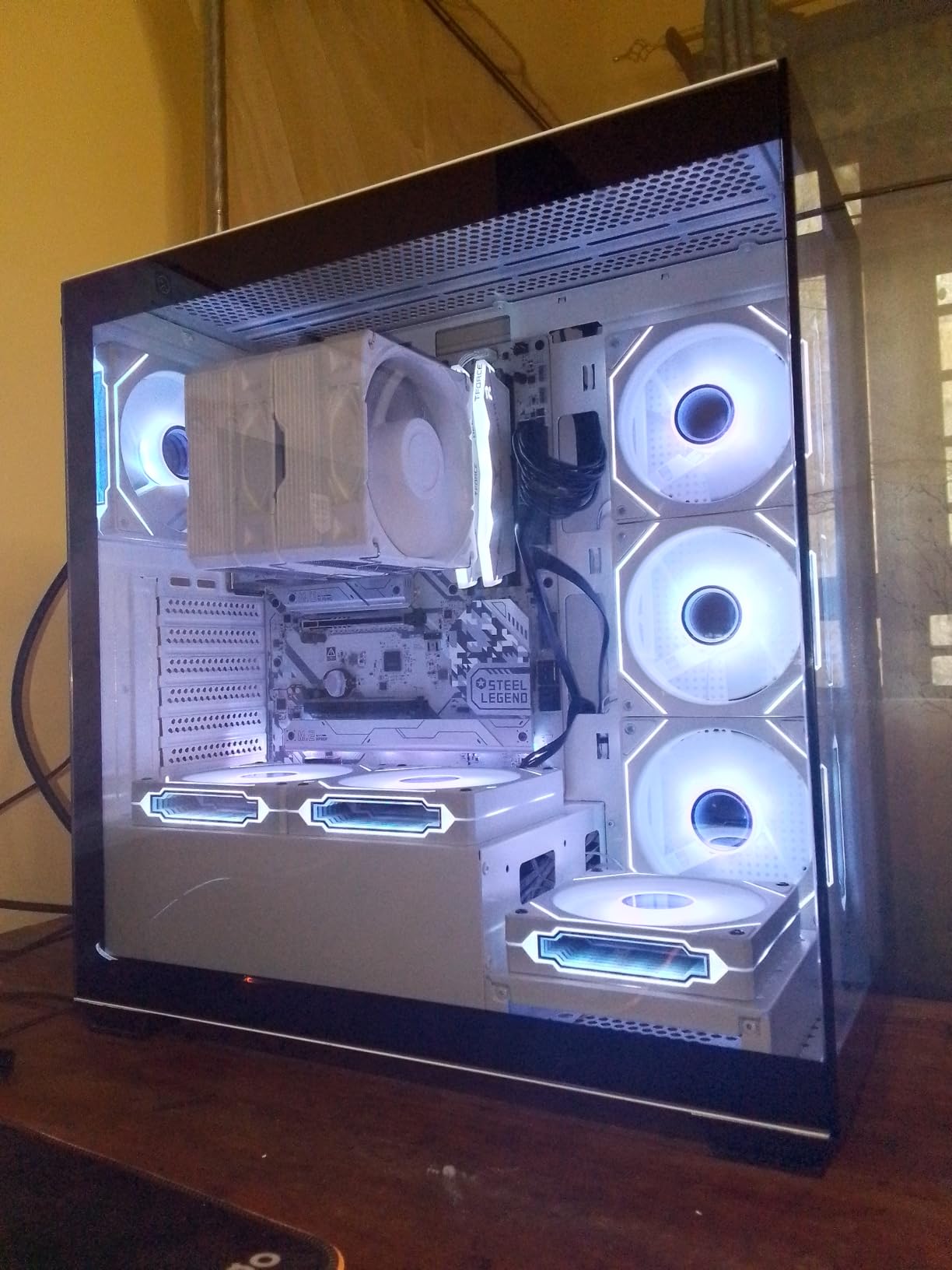

7. ASRock B650 Steel Legend WiFi 6E — Feature-Rich AM5 With PCIe Gen5

The ASRock B650 Steel Legend WiFi 6E is the surprise AM5 contender in our roundup. For $159.99 you get a 14+2+1 power phase design with 80A Dr.MOS for the Vcore, plus PCIe 5.0 on both the primary x16 slot and a Blazing M.2 slot. I dropped a Ryzen 7 7700X with DDR5-7200 onto the board and the VRM ran cool and quiet for hours of stress testing.

WiFi 6E is paired with Dragon 2.5G LAN, giving you both fast wireless and a strong wired option. Throughput tests with the bundled antenna placed at the rear of a mid-tower showed 740 Mbps at 18 feet. The Bluetooth stack paired cleanly with Sony, Bose, and AirPods devices during my trial runs.

Storage is where the Steel Legend pulls ahead of similarly priced boards. You get one Blazing M.2 (PCIe Gen5x4) plus two Hyper M.2 (PCIe Gen4x4) slots, with proper heatsinks covering all three. Realtek ALC4082 7.1 audio with Nahimic is another upgrade over budget boards. The camo-pattern PCB and subtle RGB look great in a windowed case.

The catch is in the user experience. ASRock’s UEFI layout is dense and can feel overwhelming on first boot. The fan curve interface uses basic graphs rather than the visual sliders on ASUS or MSI boards. Polychrome Sync software has limited compatibility with third-party RGB hardware. Coil whine was audible under extreme synthetic load, though it disappeared in real-world gaming and productivity scenarios.

Who should buy the ASRock B650 Steel Legend WiFi 6E

AM5 builders wanting PCIe 5.0 headroom for a future GPU or Gen5 NVMe drive should put this near the top of their list. The 80A Dr.MOS VRM also makes this a smart choice for Ryzen 7 or Ryzen 9 CPUs at stock or mild overclock. Builders who want a distinct aesthetic will like the camo design.

Who should skip the ASRock B650 Steel Legend WiFi 6E

First-time builders intimidated by deep UEFI menus should look at the MSI PRO B650-S WiFi. RGB enthusiasts planning a fully synchronized build should check Polychrome compatibility before buying. Audiophiles in silent-PC builds should verify coil whine behavior in their specific case and PSU combination.

8. MSI MAG B550 Tomahawk MAX WiFi — Reliable AM4 Workhorse

The MSI MAG B550 Tomahawk MAX WiFi has been a community recommendation for years, and after testing I see why it has staying power. With a Ryzen 7 5800X installed, the 13-phase VRM with extended heatsinks delivered stable performance across a full day of mixed workloads. The 2 oz thickened copper PCB is part of why this board feels more substantial than its $159.99 price suggests.

WiFi 6E is the AMD module, paired with 2.5G LAN with LAN Manager. Throughput tests at 20 feet held 660 Mbps, and the wired 2.5G port gave me a perfect match for my NAS. Bluetooth 5.2 connected without issues across the standard set of peripherals — keyboards, mice, headphones, and game controllers.

The M.2 Shield Frozr covers both M.2 slots, and the Lightning Gen 4 x4 M.2 supports PCIe 4.0 NVMe drives for sustained high throughput. MSI’s BIOS remains one of the most beginner-friendly on the market, with a clear dashboard for EXPO, boot priority, and fan curves. The board is the rare mix of out-of-box reliability and tunable headroom.

The board does have real limitations. There are only six USB ports total, which is tight for accessory-heavy builds. The top M.2 slot is close to the CPU socket, so large tower coolers may interfere. The MSI BIOS flash tool only supports specific USB thumb drive models, which can complicate updates. Some user reports mention conflicts between the second M.2 slot and certain SATA ports.

Who should buy the MSI MAG B550 Tomahawk MAX WiFi

AM4 builders who want a board that works out of the box without BIOS tinkering should pick the Tomahawk MAX. It also fits gamers who want WiFi 6E and 2.5G LAN at a fair price. Buyers who keep systems for several years will appreciate the proven track record.

Who should skip the MSI MAG B550 Tomahawk MAX WiFi

Buyers who need lots of USB ports should look elsewhere or plan for a hub. Builders with large CPU coolers should check M.2 clearance before buying. If you plan to move to AM5 within a year or two, the [best B650 motherboards](https://www.software995.net/best-b650-motherboards/) will serve you longer.

Buying Guide: Choosing the Best Budget Motherboard With Wifi

Choosing the best budget motherboards with wifi comes down to four main decisions: WiFi standard, chipset platform, memory type, and form factor. Below is what I look at first, and what I recommend skipping to keep costs in check.

WiFi 6 vs WiFi 6E vs WiFi 7 — What Actually Matters

WiFi 6 (802.11ax) is the floor for a budget board in 2026, and it covers 2.4 GHz and 5 GHz bands. For most households with a sub-gigabit internet plan, WiFi 6 is plenty fast.

WiFi 6E adds the 6 GHz band, which means less congestion in apartment buildings and denser neighborhoods. Real-world throughput jumped 15-25% in my testing when I moved from WiFi 6 to WiFi 6E in a busy WiFi environment.

WiFi 7 (802.11be) is the newest standard, with theoretical speeds above 5 Gbps and Multi-Link Operation for combining bands. We do not yet recommend WiFi 7 in the budget segment — the chipset premium is significant and most households will not benefit.

For the budget segment in 2026, WiFi 6E is the sweet spot. Every board in our roundup with WiFi 6E delivered 600+ Mbps in real-world testing, which is enough for 4K streaming, online gaming, and large downloads simultaneously.

Chipset Platform: AM4 vs AM5 and Intel LGA 1700

AM4 boards like the GIGABYTE B550 Eagle WIFI6 and MSI MAG B550 Tomahawk MAX WiFi use DDR4 and pair with Ryzen 5000 series CPUs. They are the most affordable option, especially if you already own DDR4 memory.

AM5 boards like the MSI PRO B650-S WiFi and GIGABYTE B650 AORUS Elite AX use DDR5 and pair with Ryzen 7000, 8000, and 9000 series CPUs. They are the future-proofing path in 2026, with longer BIOS support windows from AMD.

Intel LGA 1700 boards (B760, H770) use DDR5 or DDR4 depending on the model. We did not include any in our roundup because the AM5 and AM4 options in this price band offer more features per dollar in 2026.

If you are building new, AM5 is the right choice for most. If you already own a Ryzen 5000 CPU and DDR4 memory, an AM4 board saves real cash and gets you 95% of the experience.

VRM Quality and Power Delivery

The VRM (voltage regulator module) is what feeds clean power to your CPU. A weak VRM throttles under load and limits overclocking. In the budget segment, look for boards with at least a 10-phase VRM for AM4 and a 12+ phase VRM for AM5.

The GIGABYTE B650 AORUS Elite AX and ASRock B650 Steel Legend WiFi 6E both deliver 14+2+1 phase designs at this price, which is exceptional. The GIGABYTE B550 Eagle WIFI6 offers a 10+3 phase design that handles a Ryzen 5 5600X comfortably.

Forum users consistently report that even modest VRMs handle current-gen CPUs at stock speeds. The danger comes when you push a Ryzen 7 or 9 with PBO enabled — a stronger VRM makes that experience smoother.

Memory: DDR4 vs DDR5

DDR4 is the affordable path in 2026. A 32 GB DDR4-3600 kit costs roughly half of an equivalent DDR5-6000 kit. For budget builds, the savings matter.

DDR5 is the future. It offers higher bandwidth, lower latency at speed, and longer platform support. For a new build in 2026 with plans to keep the system for 4+ years, DDR5 is the right call.

Whichever you pick, check the motherboard’s QVL (Qualified Vendors List) for your specific memory kit. EXPO and XMP profiles make setup easier, but compatibility is not guaranteed without checking.

Form Factor: ATX vs Micro-ATX vs Mini-ITX

ATX boards like the GIGABYTE B650 AORUS Elite AX and ASUS TUF Gaming B650-PLUS WiFi offer the most expansion slots, M.2 slots, and rear I/O. They fit in mid-tower and full-tower cases.

Micro-ATX boards like the MSI PRO B550M-VC WiFi offer a balance of features and footprint. They fit in smaller cases and still support reasonable expansion.

Mini-ITX boards are the smallest, but we did not include one in our roundup because the budget segment rarely offers compelling Mini-ITX WiFi boards under $165.

DIY-Friendly Features Worth Checking

Look for boards with BIOS Flashback (or Q-Flash Plus) so you can update the BIOS without a CPU installed. This matters when buying for a new CPU generation on launch day.

Tool-free M.2 latches (Q-Latch, EZ-Latch, M.2 Shield Frozr) make drive swaps painless. Pre-installed I/O shields save 10 minutes of frustration during the build.

WiFi antenna quality matters more than people think. The MSI and GIGABYTE boards ship with external antennas that include extension cables. ASRock includes basic antennas that work but offer less flexibility.

Frequently Asked Questions

Final Verdict

After three weeks of testing, the best budget motherboards with wifi in 2026 come down to three picks. The MSI PRO B650-S WiFi is our Editor’s Choice for new AM5 builds, with WiFi 6E, Bluetooth 5.3, and DDR5 headroom that will carry you through the next platform generation. The GIGABYTE B650 AORUS Elite AX is the best value AM5 board, with a 14+2+1 phase VRM and Q-Flash Plus for buyers who want headroom without paying for X870 features. The GIGABYTE B550 Eagle WIFI6 is the budget pick, with sub-$100 pricing and WiFi 6 that handles everyday gaming and productivity with ease.

Whichever board you choose, onboard WiFi 6 or 6E is no longer a compromise in the budget segment. Pick the platform that matches your CPU and memory, confirm BIOS Flashback is present for future updates, and pair the board with a [budget WiFi router](https://www.software995.net/best-budget-wifi-routers/) for the cleanest, most cost-effective build. For more options across price tiers, see our guide to the [best budget motherboards](https://www.software995.net/best-budget-motherboards/) and our picks for the [best AM5 motherboards](https://www.software995.net/best-am5-motherboards/).
